Product Highlights
Description

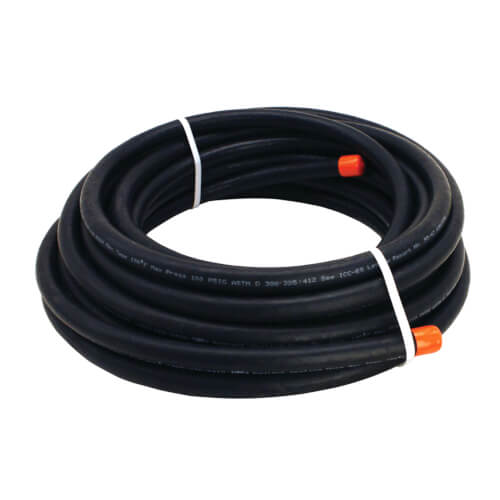

Cross-linked Durel EPDM is extruded into a tube and wrapped with an AlumaShield barrier and a second layer of EPDM. This composite tube is reinforced with 1000 denier aramid cord, the same incredibly tough and heat resistant material used to make fire and bullet proof shields. A final outer jacket of EPDM is applied. The result is a durable, flexible tubing formed of five heat and age resistant materials, proven in tens of thousands of installations over the years.
One of the best features of our Onix tubing is its aluminum barrier layer, AlumaShield+. Unlike plastic barriers, AlumaShield is unaffected by sunlight, UV radiation from fluorescent lamps, moisture, or elevated temperatures. Due to its placement inside the tube, the AlumaShield barrier can't be scraped off or damaged by typical job site abuse.
Onix is the product that can be installed with lifelong confidence in blazing heat and sunlight, or in Arctic frost and shadows. Used for commercial snowmelting, space heating, residential staple-up and supply/return lines, you'll find Onix installed in thousands of quality projects every year.
Specs
| Length (Feet): | 200' |
|---|---|
| Size: | 3/4" |
| Tubing Type: | EPDM Rubber |
| Color: | Black |
| Application: | Heating |
| Max Pressure (PSI): | 100 |
| Grade: | Cross-Linked Durel EPDM |
| Warranty: | 25 Year |
| Standards Met: | ASTM F877 ASTM F876 |
| Max Temp (F): | 180°F |
Contact
Questions?
Product Reviews
Be the first to write a review.
Product Q&A
7 QuestionsQ: would this onix tubing work for in joist flooring heat?
Asked by Benny 14 years ago
Add your answer
Verified Reply- PexSupply StaffAny tubing can be used as a staple up but the issues you are going to face is being able to actually staple up the tubing. Most staple guns are not large enough to handle the size you are requesting. Also, because of the larger diameter ¾” onix, the minimum bend radius is 6” which means getting the tubing to a standard 8” OC will require the “light bulb” effect on the runs when turning the tubing to run back. Usually 3/8” or ½” is used because of these issues.
Yes
Q: Can Onix be safely used for potable/drinking water applications?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffOnix tubing is not NSF approved for use with potable water.
Q: is it compatible with sharkbite fittings? if so, do i use 3/4" sharkbite for 1/2" onix?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt is not. SharkBite fittings only work with PEX, copper, and CPVC.
Q: What do you sell to attach the 1/2" Onix? In a staple up application it would seem you would need 7/8" staples.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffFor 1/2" Onix, you would need to use staples that are designed for 3/4" PEX. Two options you have are HTALON07 and P6BK (you would also need an appropriate staple gun with the second choice).
Q: gals of liq. = how many feet of 3/4 " pipe
Asked by Key Largo 15 years ago
Add your answer
Verified Reply- PexSupply StaffThere are .025 gallons per foot for the 3/4" Onix Tubing.
Q: What is the o.d. of the 1/2" tubing?
Asked by pete 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe O.D. is 7/8".
Q: What is the I.D. of 5/8 tubing?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe I.D. of this tubing is 5/8".
