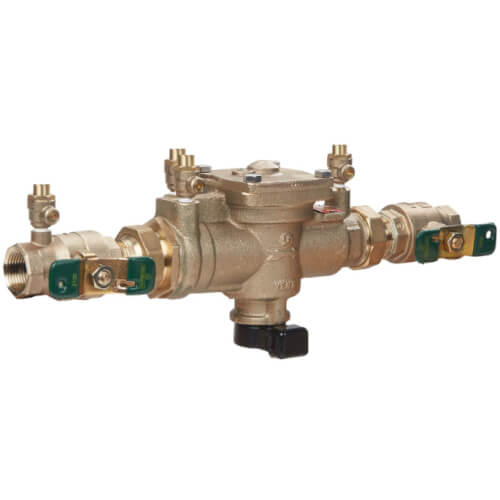

1" LFU009M2-QT-FS Lead Free Reduced Pressure Zone Assembly w/ Flood Sensor Connectivity

This 1" lead free reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead free bronze body, union end connections, quarter turn ball valve shutoffs with lever handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly includes flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Sensor activation requires purchase of an activation kit which can be connected to existing building and irrigation management systems.

Specifications:

• Body Material: Lead Free Copper Silicon Alloy
• Inlet Connection Size: 1"
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Connection Type: Union Joint
• Inlet Thread Type: FPT
• Maximum Temperature-Fahrenheit: 180
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 1"
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Connection Type: Union Joint
• Outlet Thread Type: FPT
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Series: LFU009
