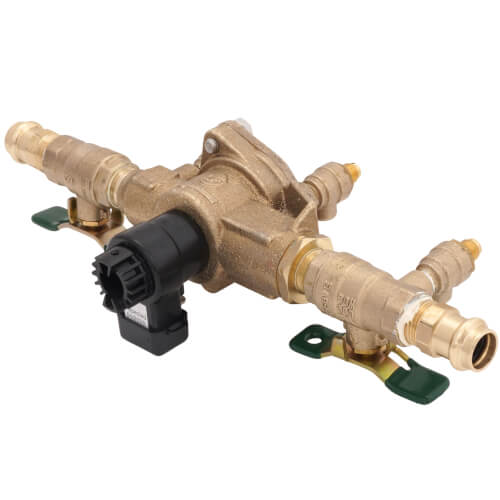

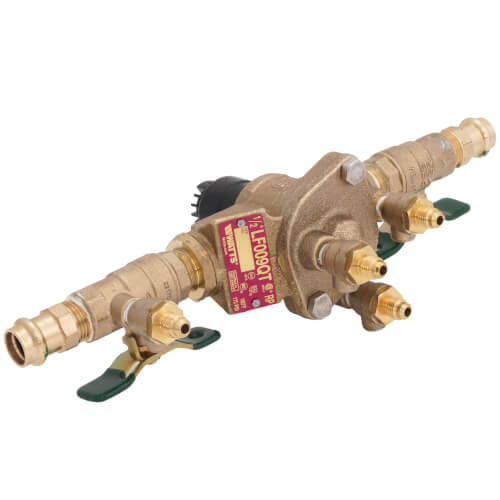

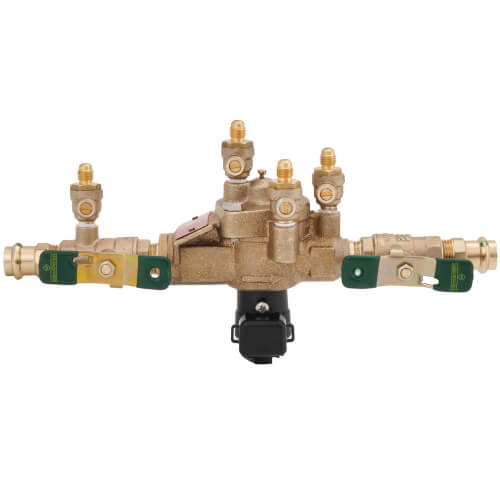

1/2" Lead Free Bronze RPZ w/ Press Connections (LF009FS)

Maximum Working Pressure: 175psi (12.06 bar)
This 1/2" lead free reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards. This assembly consists of a lead free bronze body, NPT end connections with Viega ProPress adaptors, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications.

Features:

• Quarter turn full port resilient seated ball valve shutoffs
• Lead free bronze body construction for durability
• Internal relief valve for reduced installation clearances
• Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Single access cover and modular check construction for the ease of maintenance
• Alert features available with add-on sensor connection kit
