$292.85 each
In Stock
This item replaces: 0125576, 0125577
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Cast Copper Silicon Alloy
75 MAX PSI
25 PSI
Copper Press
Copper Press
1/2"
Description
–
NPT threaded female inlet x NPT female outlet
Overview

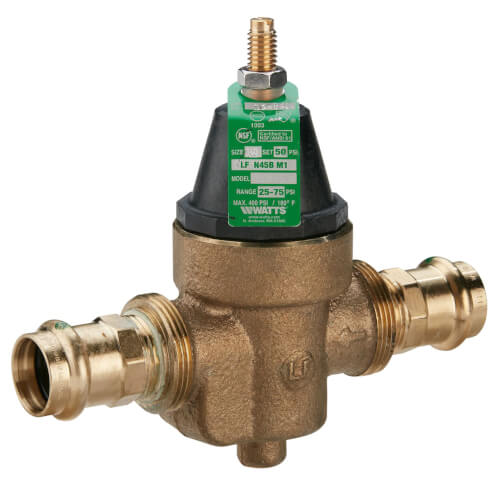

Series LFN45B-M1 Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. The LFN45B features Lead Free construction to comply with Lead Free installation requirements. This series is suitable for water supply pressures up to 400 psi and may be adjusted from 25 – 75 psi. The standard setting is 50 psi. All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.
Features
Overview
Series LFN45B-M1 Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. The LFN45B features Lead Free construction to comply with Lead Free installation requirements. This series is suitable for water supply pressures up to 400 psi and may be adjusted from 25 – 75 psi. The standard setting is 50 psi. All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.
Features
- Integral stainless steel strainer
- Thermoplastic seat & cage
- Lead Free cast copper silicon alloy body construction
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
Specs
–
| Size: | 1/2" |
|---|---|
| Pressure Range: | 25 to 75 psi |
| Max Pressure (PSI): | 75 |
| Min Pressure (PSI): | 25 |
| Temperature Range (F): | 33°F to 180°F |
| Inlet Type: | Copper Press |
| Outlet Type: | Copper Press |
| Material: | Cast Copper Silicon Alloy |
| Lead Free: | Yes |
