$597.12 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (2)
This item replaces: 0125581
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Cast Copper Silicon Alloy
75 MAX PSI
25 PSI
Copper Press
Copper Press
1-1/2"
Description
–

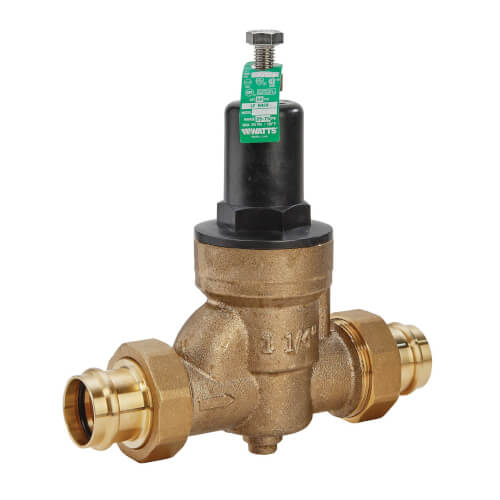

Note: Image may not be exact representation of item.
This 1-1/2 inch water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free brass body construction, with double union press connections, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (1.72 to 5.17 bar) with the standard setting at 50 psi (3.45 bar).
Specifications
This 1-1/2 inch water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free brass body construction, with double union press connections, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (1.72 to 5.17 bar) with the standard setting at 50 psi (3.45 bar).
Specifications
- Thermoplastic seat and cage
- Integral stainless steel strainer removable for cleaning
- Sealed spring cage for accessible outdoor or pit installations
- Double union press connections
- Maximum Operating Temperature-Fahrenheit: 180
- Body Material: Lead Free Copper Silicon Alloy
Specs
–
| Size: | 1-1/2" |
|---|---|
| Pressure Range: | 25 to 75 psi |
| Min Pressure (PSI): | 25 |
| Max Pressure (PSI): | 75 |
| Temperature Range (F): | 33°F to 180°F |
| Inlet Type: | Copper Press |
| Outlet Type: | Copper Press |
| Material: | Cast Copper Silicon Alloy |
| Lead Free: | Yes |
