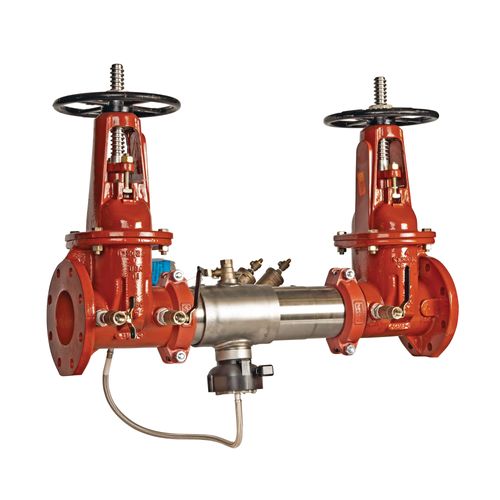

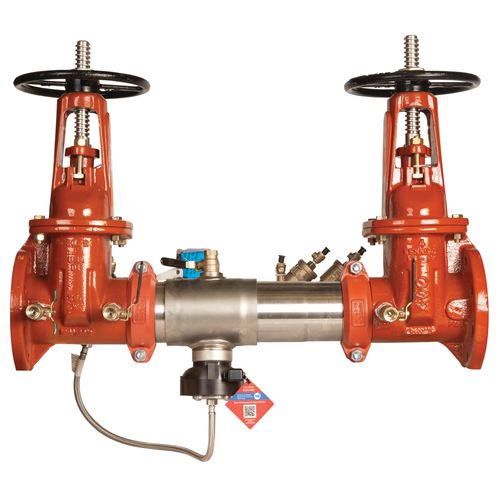

6" LF957RPDA-OSY-GPM-FS Lead Free RPZ Assembly, OSY Shutoff, GPM Meter, w/ Flood Sensor

This 6 inch lead free reduced pressure detector backflow preventer assembly help stop the reverse flow of liquids due to backpressure or backsiphonage, where potential health hazard exists. Extremely compact and lighter than traditional designs it is approved for horizontal installation. This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check valves, resilient seated gate valves with outside stem and yoke, test cocks, corrosive resistant bottom mounted pressure relief valve, and comes furnished with a gallon per minute meter to detect underground leaks and unauthorized water use. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor relays a signal that triggers notification of potential flooding to service personnel. The add-on sensor connection kit is available for building management systems and cellular communication.

Features

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Stainless steel housing and sleeve
• UL and FM outside stem and yoke resilient seated gate valves
• Furnished with a gallon per minute meter
• Replaceable check disc rubber
• Compact construction for smaller enclosures
• Bottom mounted relief valve reduces clearance requirements when installed against an outside wall
• Torsion spring check valves provides maximum flow at low pressure drop
