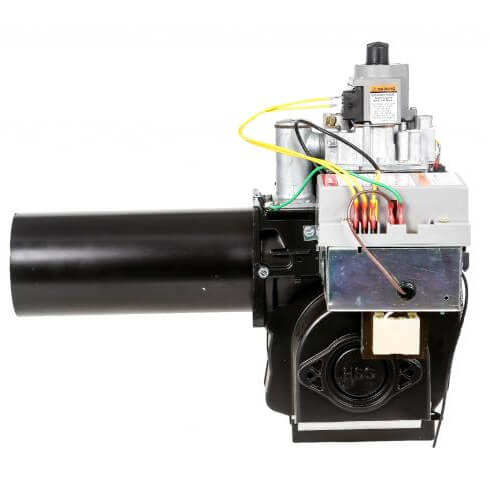

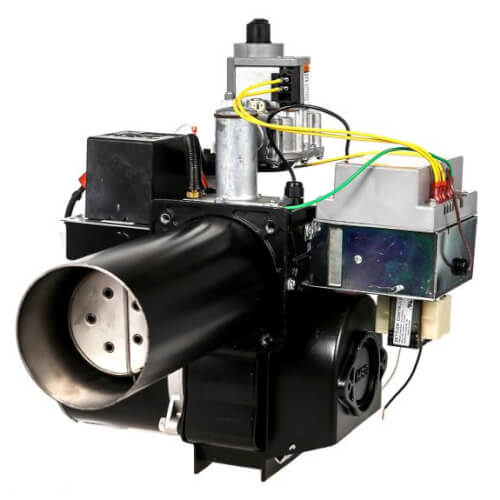

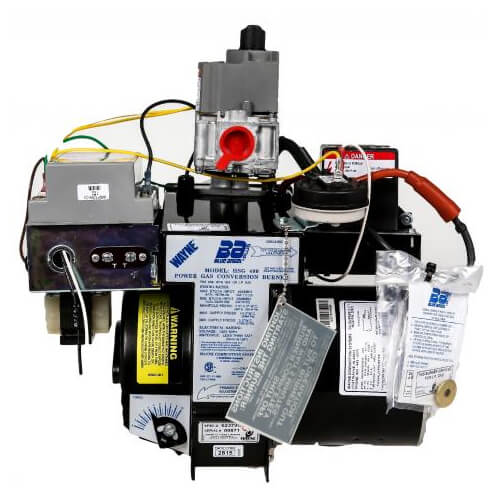

HSG400 Blue Angel Direct Spark Ignition Gas Burner (200,000 - 400,000 BTU)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,275.99 each
Backorder
Get it Wed, Oct 25 - Wed, Nov 22
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Direct Spark Ignition
120v
Description
–
Better known in the field as the Blue Angel burner, the HSG400 remains one of the most widely used power burners around the world in its firing range.
With good combustion in poor draft situations, the HSG400 delivers the performance and reliability that’s become synonymous with the Wayne name.
Designed for easy installation, the burner is easy to set-up and has the ability to fire between the entire range. Identify and install the correct orifice, set the gas valve pressure and adjust the primary and off cycle dampers.
All HSG400 burners are factory set to fire natural gas, while the firing of LP is easily achieved with an orifice change in the field.
Specifications:
With good combustion in poor draft situations, the HSG400 delivers the performance and reliability that’s become synonymous with the Wayne name.
Designed for easy installation, the burner is easy to set-up and has the ability to fire between the entire range. Identify and install the correct orifice, set the gas valve pressure and adjust the primary and off cycle dampers.
All HSG400 burners are factory set to fire natural gas, while the firing of LP is easily achieved with an orifice change in the field.
Specifications:
- Ignition Source: Direct Spark
- Gas Valve Operators: 24 VAC
- Gas Connection: 3/4" NPT
- Air Tube Length: 9"
- Insertion Depth: 8"
- Fuel: Nat or LP, 2" to 4" w.c. - adjustable
- Voltage: 120V, 60 Hz
- Minimum Firing Rate: 200,000 BTU/hr
- Maximum Firing Rate: 400,000 BTU/hr
Specs
–
| Product Type: | Burner |
|---|---|
| Ignition Type: | Direct Spark Ignition |
| BTU (Max): | 400000 |
| BTU (Min): | 200000 |
| Voltage: | 120v |
| Hertz: | 60 |
