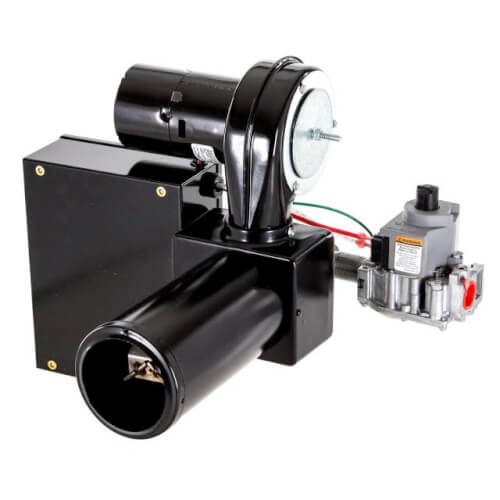

The P265F BB-E Boiler Burner features Wayne's new electrical enclosure design and muli-try ignition. Similar to the standard P265F BB, it's exclusively designed for conversion of boilers from oil to gas operation.
This model utilizes a stainless steel air tube and stainless steel air tube end focusing ring to provide a tighter, shorter flame pattern, The P265F BB yields a high efficiency conversion, low emissions and is extremely simple to service. Maximum 6 3/8" usable insertion.
- BTU: 65,000 - 200,000 Btu/hr
- Air Tube Length(s): 7.375"
- Air Tube Diameter(s): 4"
- Electrical (Voltage): 120V
- Electrical (Hertz): 50 Hz, 60 Hz
- Floor Area: Minimum 0.6 sq/in / 1,000 Btu/hr; Maximum 0.9 sq/in / 1,000 Btu/hr
- Fuel: Natural Gas
- Gas Inlet Connection: 1/2" NPT
- Ignition: Direct Spark
- Maximum BTU/Hr Input: 200,000 Btu/hr
- Minimum BTU/Hr Input: 65,000 Btu/hr
- Modulation Option Available: Yes
- On/Off Availability: Yes
- Overall Height: 13.76"
- Overall Width: 17.04"
- Overall Length: 14.63"
- Shipping Weight: 24 lbs
