74104W has been discontinued
Discontinued May 23, 2022
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
Product Highlights
–
MNPT x MNPT Connection
1"
3.5 Cv
131°F Max Temp
95°F Min Temp
95°F - 131°F
Description
–

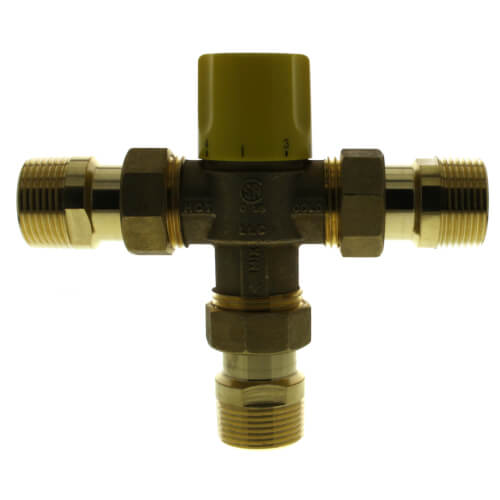

The Webstone TMV is designed for use in heating as well as domestic water systems and provides outlet temperatures ranging
between 95°-131° F. The valve may be positioned in any orientation; designated lengths of straight piping before and after the unit
are not required. The Webstone Thermostatic Mixing Valve is a SAFETY VALVE. Inspect the TMV at least once per year to verify it is
operating correctly. It may be necessary to check the valve more frequently in installations with poor or unknown water quality. Use
of a filter or strainer is required for installations with poor or unknown water quality.
Design Advantages
Design Advantages
- Suitable for hydronic applications, point of use, and water distribution systems
- Union connections simplify installation and maintenance
- Temperature locking handle ensures appropriate output range
- Guaranteed for life
Specs
–
| Size: | 1" |
|---|---|
| Connection Type: | MNPT x MNPT |
| Connection Method: | Threaded |
| Working Pressure (PSI): | 30-150 |
| Min Pressure (PSI): | 30 |
| Max Pressure (PSI): | 150 |
| Temperature Range (F): | 95°F - 131°F |
| Max Temp (F): | 131°F |
| Min Temp (F): | 95°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 ASSE 1070 |
| Application: | Point of Source Point of Use |
| Flow Capacity (Cv): | 3.5 |
