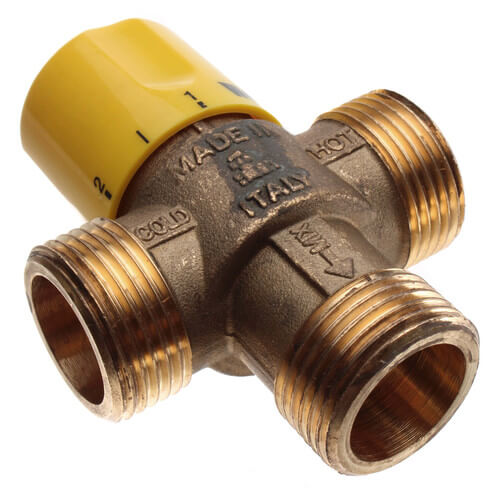

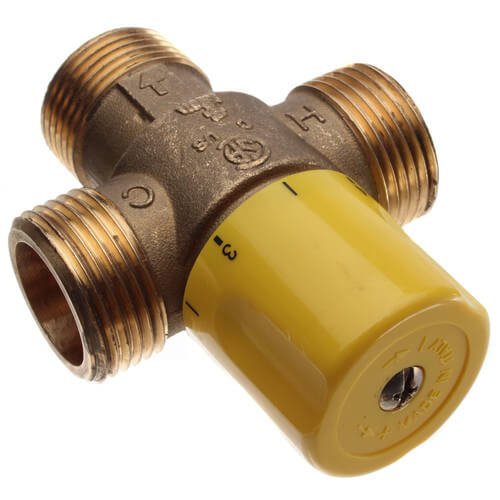

3/4" PEX Crimp Brass Thermostatic Mixing Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
H-71103W has been discontinued
Discontinued August 12, 2022
This product was discontinued by the manufacturer.
This item replaces: 73103W
Direct Replacement:

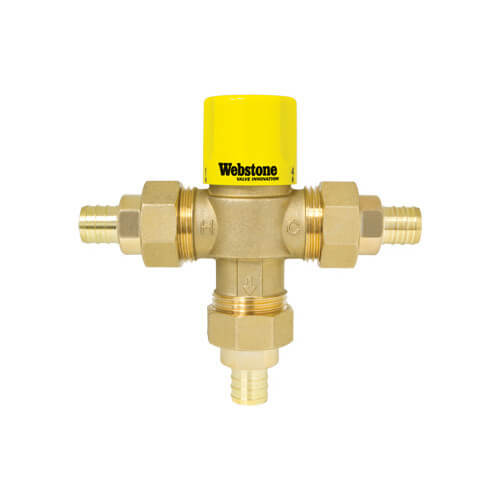

3/4" PEX Crimp Brass Thermostatic Mixing Valve w/ Check Valve (Lead Free)
Product Highlights
–
PEX Crimp x PEX Crimp Connection
3/4"
3.5 Cv
131°F Max Temp
95°F Min Temp
95°F - 131°F
Description
–
The Webstone TMV is designed for use in heating as well as domestic water systems and provides outlet temperatures ranging
between 95°-131° F. The valve may be positioned in any orientation; designated lengths of straight piping before and after the unit
are not required. The Webstone Thermostatic Mixing Valve is a SAFETY VALVE. Inspect the TMV at least once per year to verify it is
operating correctly. It may be necessary to check the valve more frequently in installations with poor or unknown water quality. Use
of a filter or strainer is required for installations with poor or unknown water quality.
Product Features
Product Features
- Heavy Duty Forged Brass Construction

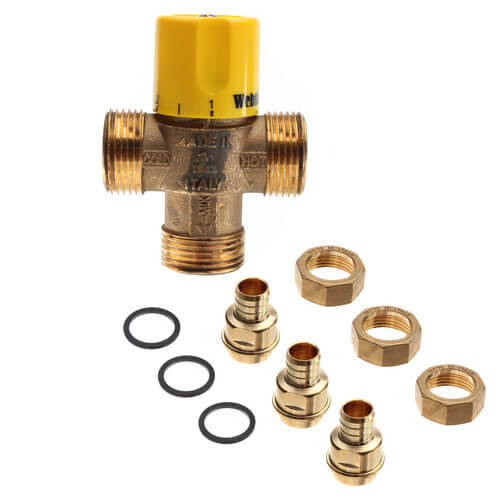

- Union connections simplify installation and maintenance
- Temperature locking handle to ensure appropriate output range
Specs
–
| Min Temp (F): | 95°F |
|---|---|
| Size: | 3/4" |
| Working Pressure (PSI): | 30-150 |
| Connection Type: | PEX Crimp x PEX Crimp |
| Connection Method: | PEX |
| Min Pressure (PSI): | 30 |
| Max Pressure (PSI): | 150 |
| Temperature Range (F): | 95°F - 131°F |
| Max Temp (F): | 131°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 ASSE 1070 |
| Application: | Point of Source Point of Use |
| Flow Capacity (Cv): | 3.5 |
