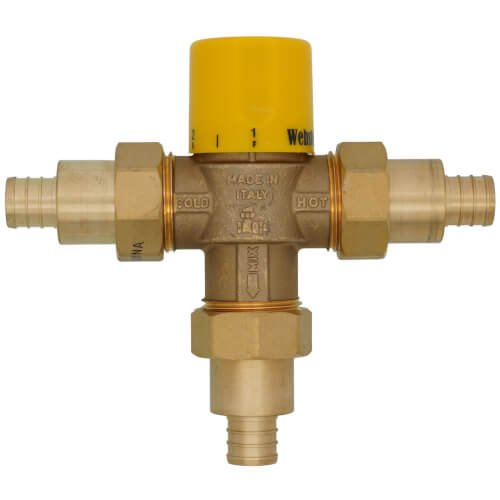

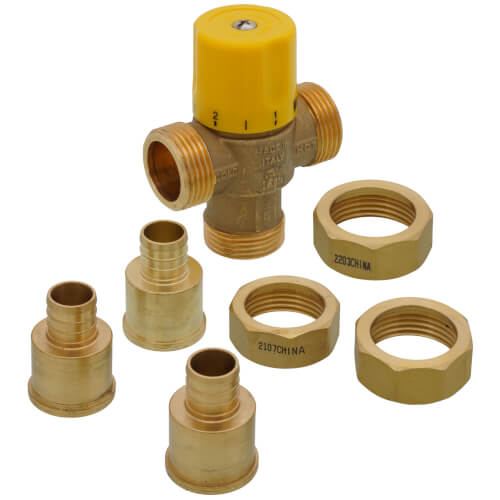

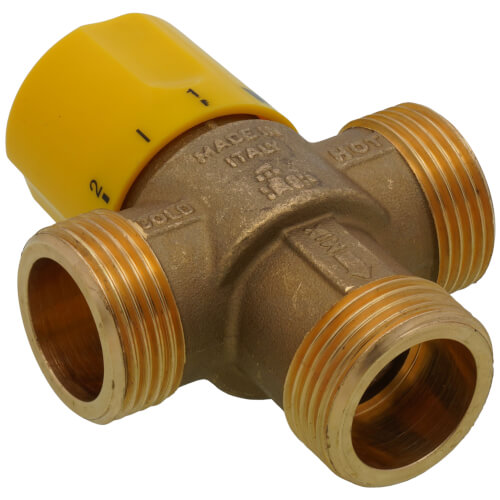

3/4" PEX Crimp Brass Thermostatic Mixing Valve w/ Check Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$165.30 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
Size:
3/4"
Connection Type:
PEX Crimp x PEX Crimp
This item replaces: 71203W, 73203W, H-71103W
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
PEX Crimp x PEX Crimp Connection
3/4"
3.5 Cv
131°F Max Temp
95°F Min Temp
95°F - 131°F
Description
–
The Webstone TMV is designed for use in heating as well as domestic water systems and provides outlet temperatures ranging
between 95°-131° F. The valve may be positioned in any orientation; designated lengths of straight piping before and after the unit
are not required. The Webstone Thermostatic Mixing Valve is a SAFETY VALVE. Inspect the TMV at least once per year to verify it is
operating correctly. It may be necessary to check the valve more frequently in installations with poor or unknown water quality. Use
of a filter or strainer is required for installations with poor or unknown water quality.
Design Advantages
Design Advantages
- Suitable for hydronic applications, point of use, and water distribution systems
- Union connections simplify installation and maintenance
- Temperature locking handle ensures appropriate output range
- Guaranteed for life
Specs
–
| Min Temp (F): | 95°F |
|---|---|
| Size: | 3/4" |
| Connection Type: | PEX Crimp x PEX Crimp |
| Connection Method: | PEX |
| Working Pressure (PSI): | 30-150 |
| Max Pressure (PSI): | 150 |
| Min Pressure (PSI): | 30 |
| Temperature Range (F): | 95°F - 131°F |
| Max Temp (F): | 131°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASTM F1807 |
| Application: | Point of Source Point of Use |
| Flow Capacity (Cv): | 3.5 |
| Includes: | Check Valve |
