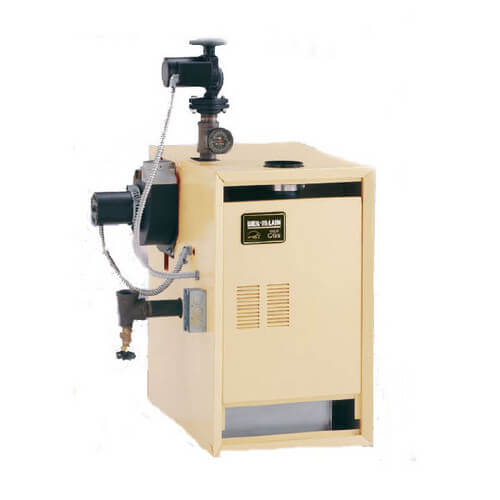

CGS-4 - 74,000 BTU Output Sealed Combustion Boiler (Nat Gas)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
381-356-215 has been discontinued
Discontinued October 9, 2012
This product was discontinued by the manufacturer.
MANUALS (4)
Schematic Feature!
Replacement Parts
Product Highlights
–
74000 Max BTUs
Natural Gas
Limited Lifetime on Cast Iron Sections/1 Year on Parts Warranty
Hydronic (Water)
100000 BTUs
16" Width
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
Weil McLain CGs boilers are direct vent water boilers that utilize sealed combustion technology to reduce energy usage by eliminating air infiltration.
Features:
Weil McLain CGs boilers are direct vent water boilers that utilize sealed combustion technology to reduce energy usage by eliminating air infiltration.
Features:
- Gas fired water boiler with cast iron sections
- Compact design saves valuable living space
- Built-in air separator
- Taco 007 circulator included
- Two-piece top jacket panel
- Insulated extended steel jacket
- Control module and ignition control with mistake-proof wiring and diagnostic indicator lights
- Inducer assembly
- Air pressure switch
- Non-linting pilot burner
- Uses stainless steel burners for quieter ignition, longer life, and improved combustion
- Easily accessible controls, vertical flueways and top cleaning for easy and quick servicing
- 40VA transformer
- Electrical junction box
- High-limit temperature control
- 30 PSI ASME relief valve
- Combination pressure-temperature gauge
- Drain valve
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| BTU Input: | 100000 |
| BTU Output: | 74000 |
| Efficiency: | 84.6% |
| Weight (lbs): | 240 lbs |
| System Type: | Hydronic (Water) |
| Water Connection: | 1" |
| Width (Inches): | 16" |
| Height (Inches): | 28.375" |
| Depth (Inches): | 23-1/4" |
| Features: | Direct Vent EI/Spark Ignition |
| Gas Connection: | 1/2" |
| Warranty: | Limited Lifetime on Cast Iron Sections/1 Year on Parts |
| Vent Size: | 3" |
| Boiler Type: | Standard |
| Application: | Heating |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our Calculator
CG-s-4 PIN (S1)
Replacement Parts
SKU: 381-356-215
Brand: Weil-McLain
Search Parts:
SEARCH PARTS
End Section, Left hand, 51124
311-103-830
Sorry, we don't currently sell this item. Request This Item
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Collector hood and transition assembly
450-020-512
Sorry, we don't currently sell this item. Request This Item
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Q&A
1 Question1 Question
Q: what is the altitude requirement ?
Asked by Dearing 14 years ago
Add your answer
Verified Reply- PexSupply StaffWeil-McLain CGs boilers can function at altitudes up to 2,000 feet above sea level. Four separate high-altitude models are also available (for 2,000-4,000 feet; 4,000-7,000 feet; 7,000-9,000 feet; and 9,000-10,000 feet).
