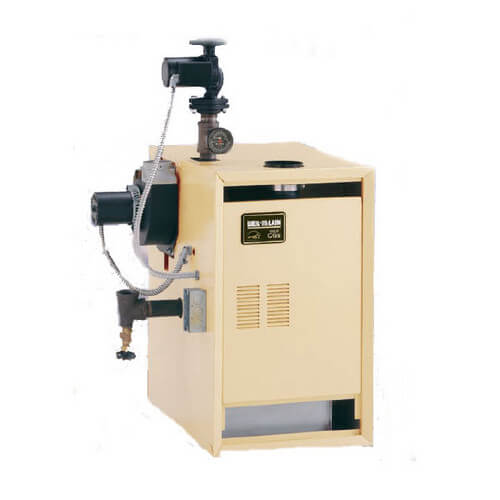

Main product image of CGS-3 - 50,000 BTU Output Sealed Combustion Boiler (LP Gas)

Hover image to zoom

CGS-3 - 50,000 BTU Output Sealed Combustion Boiler (LP Gas)

Name: CGS-3 - 50,000 BTU Output Sealed Combustion Boiler (LP Gas)
Brand: Weil-McLain
SKU: 381-356-234
Price: 2074.95 USD
Availability: OutOfStock

Brand:

Weil-McLain

SKU:

381-356-234

Rating:

(0)

Q&A:

(0)

CGS-3 - 50,000 BTU Output Sealed Combustion Boiler (LP Gas)

Hover image to zoom

381-356-234 has been discontinued

Discontinued October 9, 2012

This product was discontinued by the manufacturer.

MANUALS (4)

Schematic Feature!

Replacement Parts

Product Highlights

–

50000 Max BTUs

Propane

Limited Lifetime on Cast Iron Sections/1 Year on Parts Warranty

Hydronic (Water)

67000 BTUs

13" Width

Description

–

Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.

Weil McLain CGs boilers are direct vent water boilers that utilize sealed combustion technology to reduce energy usage by eliminating air infiltration.

Features:

Gas fired water boiler with cast iron sections
Compact design saves valuable living space
Built-in air separator
Taco 007 circulator included
Two-piece top jacket panel
Insulated extended steel jacket
Control module and ignition control with mistake-proof wiring and diagnostic indicator lights
Inducer assembly
Air pressure switch
Non-linting pilot burner
Uses stainless steel burners for quieter ignition, longer life, and improved combustion
Easily accessible controls, vertical flueways and top cleaning for easy and quick servicing
40VA transformer
Electrical junction box
High-limit temperature control
30 PSI ASME relief valve
Combination pressure-temperature gauge
Drain valve

Specs

–

Fuel Type:	Propane
BTU Input:	67000
BTU Output:	50000
Efficiency:	85.3%
Weight (lbs):	200 lbs
Water Connection:	1"
System Type:	Hydronic (Water)
Width (Inches):	13"
Height (Inches):	28.375"
Depth (Inches):	23-1/4"
Features:	Direct Vent EI/Spark Ignition
Gas Connection:	1/2"
Warranty:	Limited Lifetime on Cast Iron Sections/1 Year on Parts
Vent Size:	3"
Boiler Type:	Standard
Application:	Heating
