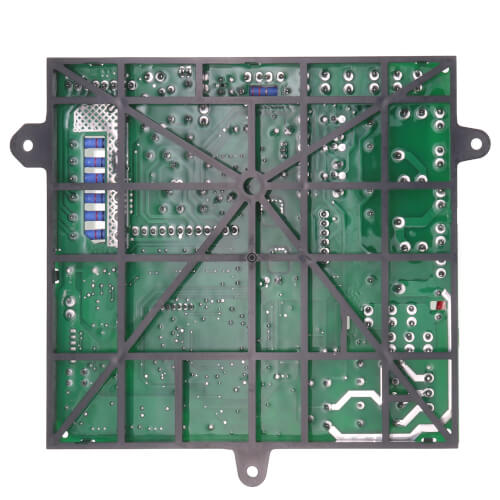

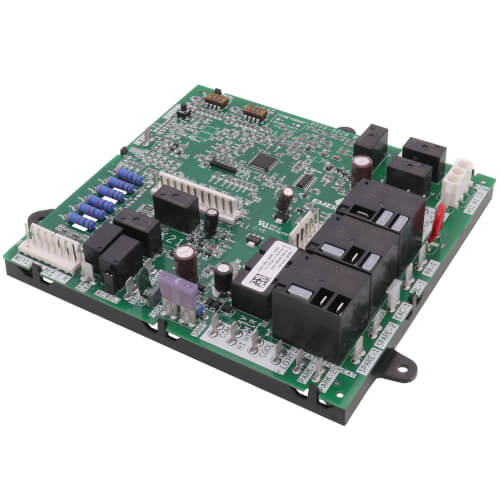

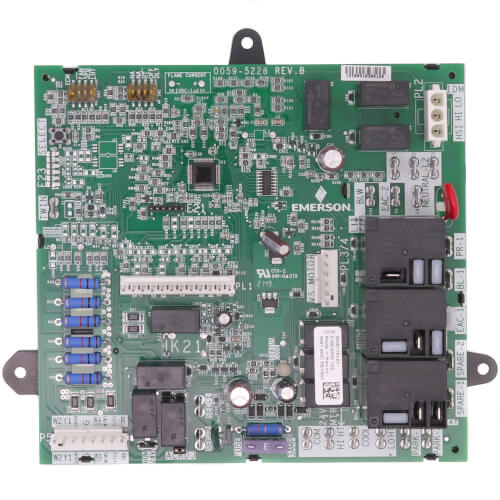

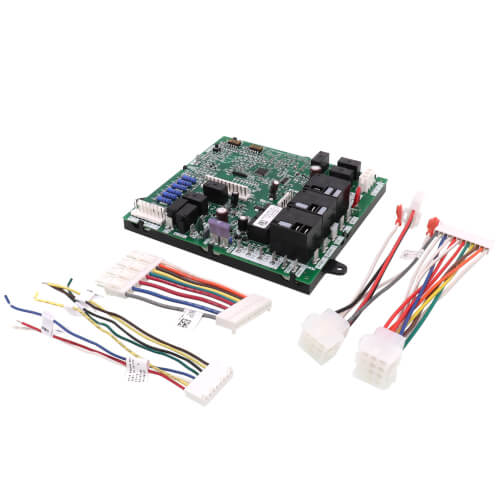

Carrier and ICP Two-Stage HSI Integrated Furnace Control Kit
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$172.59 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Two-stage HSI integrated furnace control kit for many Carrier and ICP equipment brands with PSC, variable speed, and ECMx blowers configured via dipswitch selection.
Specifications:
Specifications:
- Input Voltage: 18 to 30 VAC, 60 Hz
- Current: 0.8 amp @ 25 VAC
- Min current to insure flame detection: 0.25 microamperes DC*
- Max current for non-detection: 0.1 microampere DC
- Max allowable leakage resistance: 150 M ohms * Measuring with a DC voltmeter (1VDC = 1 microampere)
- Operating Temperature Range: -40° to 175°F (-40° to 80°C)
- Mounting: Plastic tray
- Humidity Range: 5 to 95% relative humidity (non-condensing)
- Gases Approved: Natural, Manufactured, Mixed, Liquefied Petroleum and LP Gas Air Mixtures
Specs
–
| OEM: | Carrier ICP |
|---|
