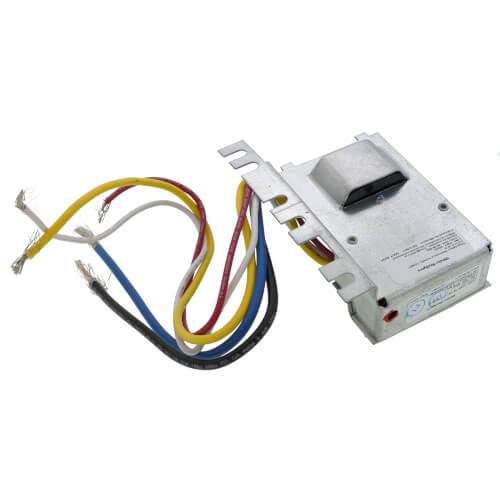

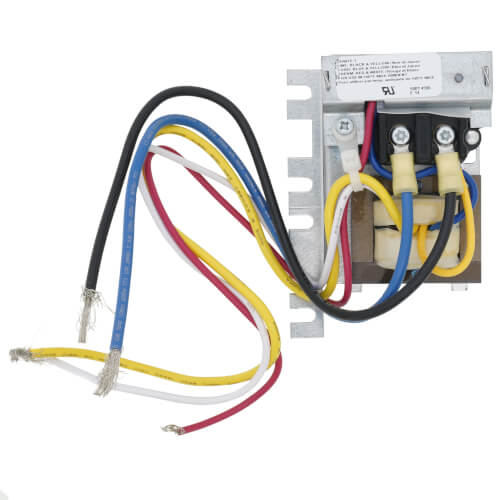

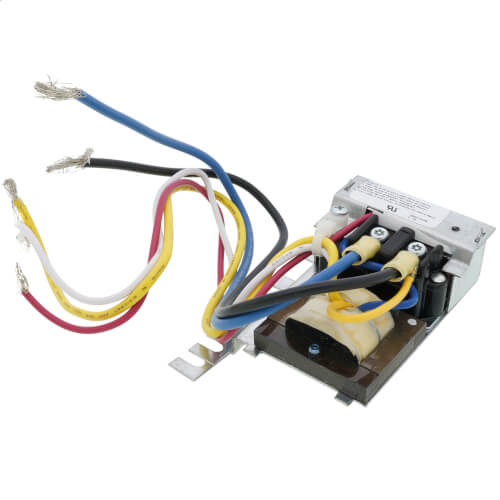

Electric Heat Relay, No Enclosure (208VAC)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$148.22 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208V
Hub
1-7/8"
4-1/2" Width
2-7/16" Depth
Normally Open
Description
–
Level-Temp Silent Operator For Low Voltage Control Of Electric Heat
Specifications
Features
Specifications
- 208 VAC
- 60Hz Input
- SPST Normally Open
- Skeleton Construction(no enclosure)
- 45 Second Delay
Features
- Level-Temp allows low voltage 2-wire thermostat to control line voltage loads such as baseboard heaters
- Conduit hub or screw mounting
- Ideal for all types of electrical heat
- Non-critical mounting angle. Universal break-off mounting tabs
- Dual Level-Temp capable of controlling two separate loads
Specs
–
| Application: | Electric Heating |
|---|---|
| Time Delay: | 45 Seconds |
| Wiring: | 18" Leadwires |
| Ambient Conditions: | -20° to 120°F |
| Voltage: | 208V |
| Hertz: | 60 |
| Thermostat Current: | 0.2A |
| Height: | 1-7/8" |
| Width (Inches): | 4-1/2" |
| Depth (Inches): | 2-7/16" |
| A.C. Resistive: | 6000W 208v 25A |
| Electrical Ratings (AFL): | 12 A @ 240 VAC |
| Electrical Ratings (ALR): | 72 A @ 208 VAC |
| Features: | No Enclosure |
| Type: | SPST |
| Position: | Normally Open |
| Mount: | Hub |
