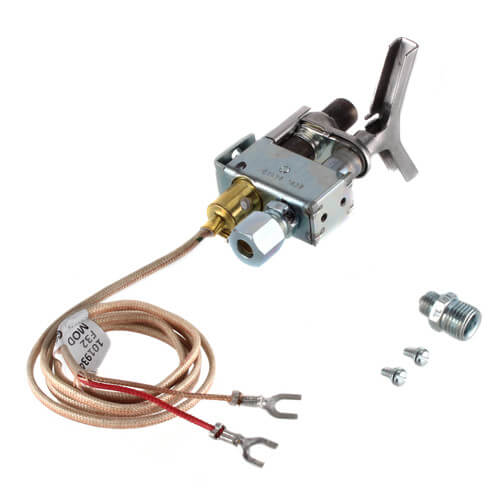

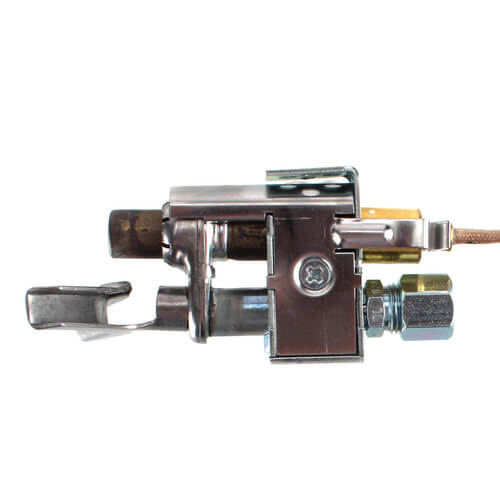

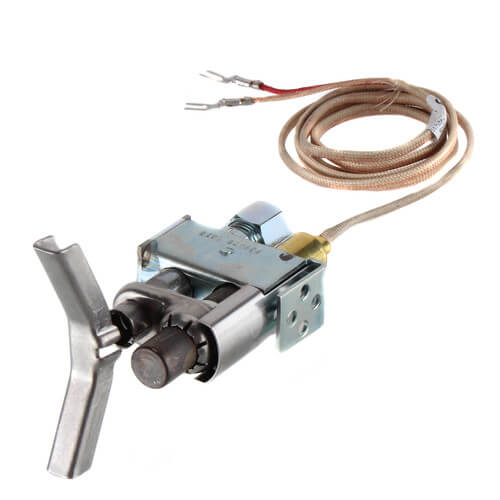

Combo Pilot Burner/Generator, 90° right and left, 2-3/16" width
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$81.04 each
In Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Provides a Pilot Flame for Igniting Gas Burners while Generating
Millivolt Output to Operate Gas Valves and Relays
FEATURES
SPECIFICATIONS
FEATURES
- Head: Channel Type
- Porting: 90° right & 90° left, 2-3/16" head width
- Orifice: .024
- Single blue flame burner for quiet operation and maximum flame stability.
- "Snorkel" primary air path incinerates dust eliminating linting problems.
- All models provided with orifice base fittings for Natural and LP.
- Flame ring surrounding generator ensures high output and extended generator life.
- High temperature stainless steel generator cover.
- Universal replacement includes extra base fitting for LP gas application (less ferrule and nut)
SPECIFICATIONS
- Output Voltage: 750 millivolts nominal, open circuit
- Leads: Standard: 2-wire, 32" with F spade clip type connections
- Base Fittings: Straight type for 1/4" O.D. tubing, compression nut included
- Orifice: All models come equipped with a screw base orifice suitable for use with natural gas. Optional orifices are available for other combustion gas applications. See base fittings, part no. 101094/101095 for other available orifices.
- Agency: IAS certified
Specs
–
| Product Type: | Pilot Assembly |
|---|---|
| Orifice: | .024 |
