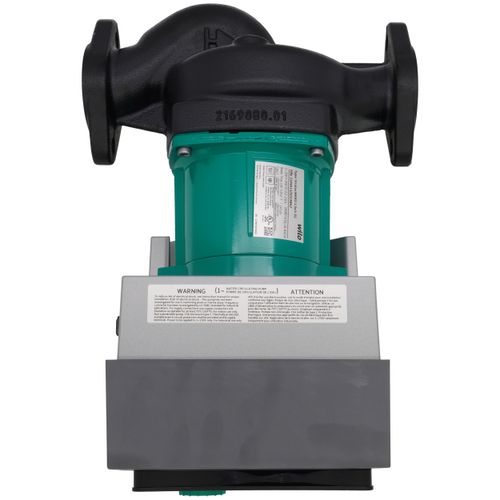

Stratos MAXO 1.5 x 3-52, 1-Phase High Efficiency Circulator, 3/4 HP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$3,382.76 each
In Stock
Get 3 Wed, Jun 17
MANUALS (2)
This item replaces: 2085593-PUMP-ONLY, 2163592
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230-240V
3/4 HP
Flanged x Flanged Connection
145 MAX PSI
Cast Iron
14°F - 230°F
Description
–
Specifications:
Motor Data:
- Product Description: Stratos MAXO 1.5x3-52
- Net Weight (approx.) 36 lbs
- Max Operating Pressure PN: 145 PSI
- Min. Suction Head (122°F): 7.1 PSI
- Min. Suction Head (203°F): 17.1 PSI
- Min. Suction Head (230°F): 25.6 PSI
- Min. Fluid Temp.: 14°F
- Max Fluid Temp.: 230°F
- Min. Ambient Temp: 14°F
- Max. Ambient Temp: 104°F
- Pump Housing Material: EN-GJL-250
- Impeller Material: PPS-GF40
- Shaft Material: X30Cr13
- Bearing Material: Carbon, antimony-impregnated
Motor Data:
- Mains Connection: 1~230-240 V ±10%, 50/60Hz Motor Type: ECM Rated Power: P2 0.763 hp Min. Speed: 450 RPM Max. Speed: 3850 RPM Power Consumption P1 max: 0.860 hp Power Consumption P1 min: 0.013 hp Max Current (1~230V): max 2.82 A Min Current (1~230V): min 0.2A Insulation Class: F Protection Class: Enclosure 2
Specs
–
| Type: | Var. Speed Pump |
|---|---|
| Product Type: | Circulator Pump |
| Material: | Cast Iron |
| Horse Power: | 3/4 |
| Voltage: | 230-240V |
| Phase: | 1 |
| Temperature Range (F): | 14°F - 230°F |
| Max Pressure (PSI): | 145 |
| Connection Size: | 1-1/2" |
| Connection Type: | Flanged x Flanged |
| Application: | Heating |
