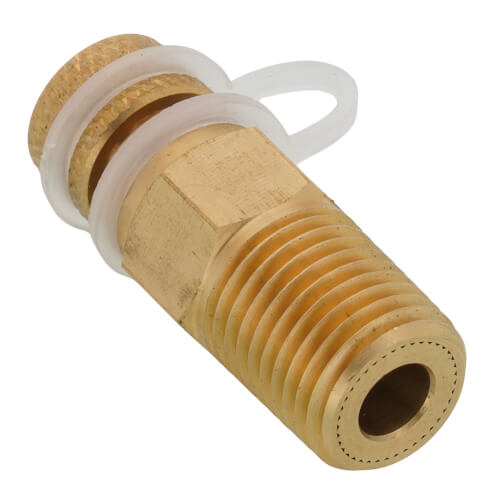

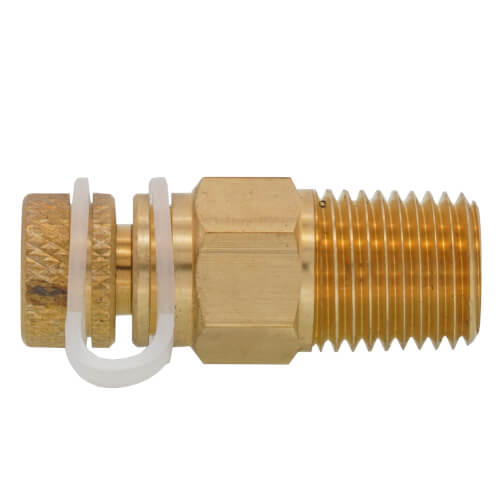

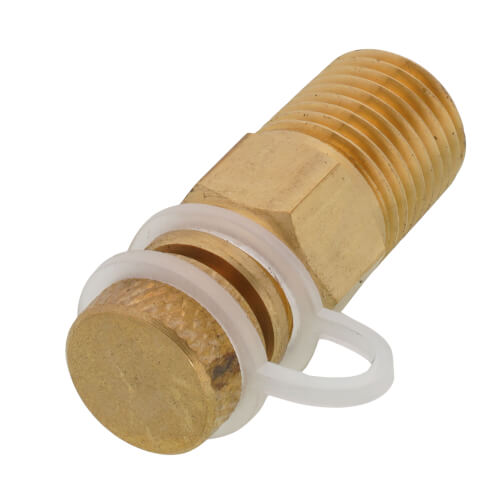

1/4" NPT STP Brass Test Plug (-40°F to 302°F & -40°C to 150°C)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$8.29 each
In Stock
Get 11 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/4" Connection
Threaded Connection
-40°C Min Temp
150°C Max Temp
-40°F Min Temp
302°F Max Temp
Description
–
Description & Features:
Application:
Specifications:
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
- Facilitates quick pressure and temperature readings at recommended test points within process
- Test plugs are available with brass or lead free brass wetted parts
- Gauge adapters ship with protective aluminum sleeve
- 1 year warranty
Application:
- Mainly used in heating, ventilation and air conditioning industries.
Specifications:
- Material/Body STP: Brass, STP-LF: Lead free brass
- Diaphragm/Core - NBR (Buna N)
- Temperature Rating -40°F to 302°F (-40°C to 150°C)
- Maximum Pressure Rating 1,000 psi (6895 kPa)
- Connection - 1/4" NPT or 1/2" NPT
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
Specs
–
| Product Type: | Test Plug |
|---|---|
| Connection Size: | 1/4" |
| Connection Type: | Threaded |
| Min Temp (C): | -40°C |
| Max Temp (C): | 150°C |
| Min Temp (F): | -40°F |
| Max Temp (F): | 302°F |
| Material: | Brass |
| Warranty: | 1 Year |
| Measures: | Fahrenheit Celsius |
