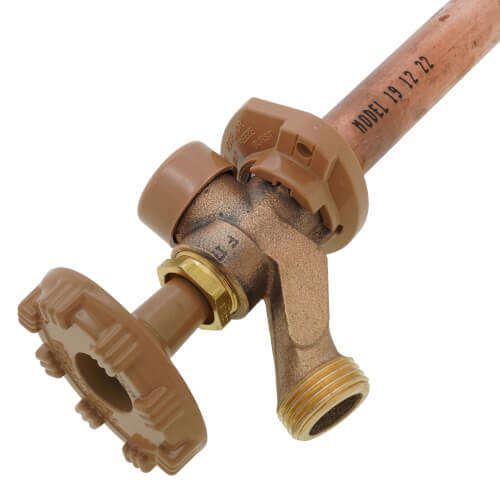

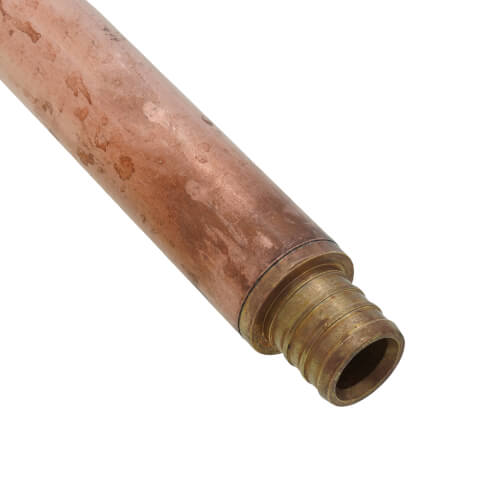

Model 19, 12", 3/4" PEX Crimp Inlet Anti-Siphon Wall Faucet w/ Metal Handle

Note: This item offers anti-siphon protection

Overall Length of this product is 13-1/8". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.

The freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.

Specifications:

• Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending
• ASSE 1019 - Type C Listed
• CSA, cUPC Approved
• Not intended for continuous use

Features:

• Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on.
• 3/4" male hose thread nozzle
• Stainless steel seat - eliminates wire draw
• EPDM packing to prevent leaking
• Full circle operating threads on valve body and retainer
• No-lead solder
• Standard “O” size seat washer
• Oval, powder-coated, die cast aluminum handle
• Optional Tee Key available (extra charge)
• Adjustable polycarbonate wall flange
• MAX PRESSURE - 125 p.s.i.
• MAX TEMPERATURE - 120° F
