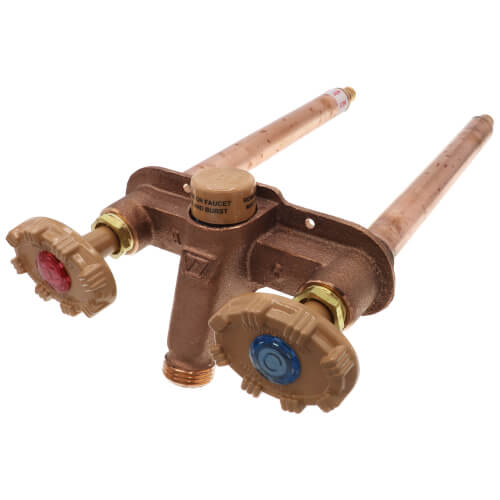

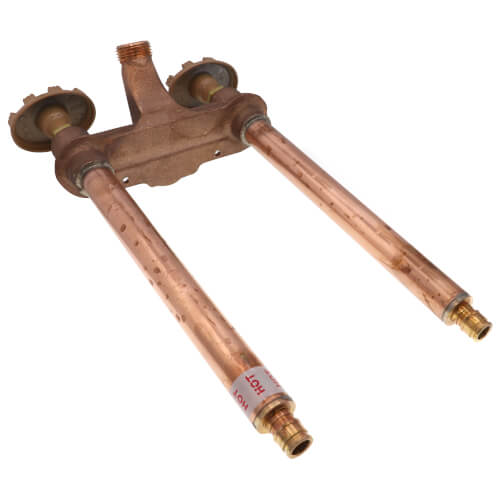

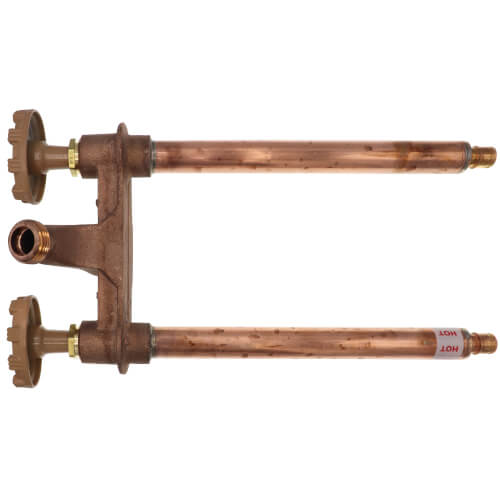

Model 22 8", 1/2" Expansion PEX Inlet Anti-Siphon Wall Faucet w/ Metal Handle

Overall Length of this product is 10". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.

The Woodford 22W-8-MH Horizontal Freezeless Hot & Cold Wall Faucet lets you have the water you need for your outside tasks throughout the year even in freezing conditions. It has a separate hot and cold inlet tube that allows manual temperature control without the hassles of cross contamination issues. This hot and cold exterior faucet from Woodford is perfect for washing your muddy car, rinsing off your tools or washing your dog with nice warm water. The integral back flow protection device eliminates the need of an add-on vacuum breaker and protects your community from contaminated water. The Woodford 22W-8-MH Wall Faucet has a rough-in mounting depth of 8" (please refer to the specification sheet for more information). The "W" designation in the part number signifies a 1/2" Wirsbo inlet tube fitting on the end of both inlet tubes. This freezeless faucet from Woodford has a patented resetting pressure relief valve that stops the faucet casing tube from bursting in cold conditions regardless of outside temperature and even if a hose is inadvertently left attached. This Woodford 22W-8-MH comes with a metal handle.

Features:

• Max pressure: 125 PSI
• Max temperature: 120 F
• EPDM packing to prevent leaking
• Oval, powder-coated, die cast aluminum handle
• Stainless steel seat - eliminates wire draw
• Standard O size seat washer
• No-lead solder
• Horizontal Freezeless Wall Faucet
• Separated hot and cold inlet tube
• 3/4 male hose thread
• Made in USA
• The W designation in the part number signifies a 1/2" Wirsbo inlet tube fitting on the end of both inlet tubes.
