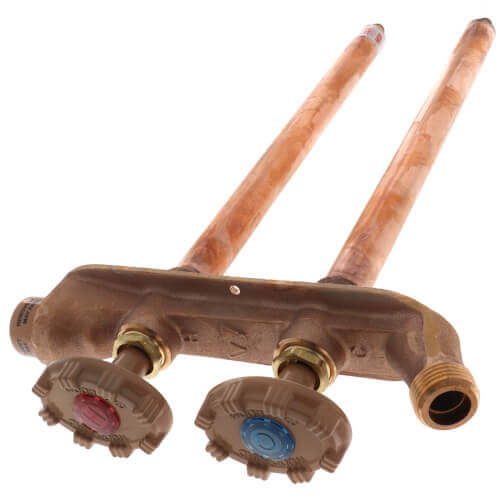

Model V22 16", 1/2" PEX Inlet Vertical Hot & Cold Anti-Siphon Wall Faucet w/ Metal Handle

Overall Length of this product is 17-3/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.

Product Overview
The freezeless Woodford Model 22 hot and cold wall faucet is designed and intended for year-round residential irrigation purposes regardless of outside temperature. Features include (2) patented resetting pressure relief valves (PRV) that prevent faucet tubes from bursting, and any consequential water damage during freezing conditions, even if a hose is unintentionally left connected to the faucet. Woodford, The Choice of Professionals.

• 1/2 in. PEX
• Vertical mounting
• 16 in. wall thickness plus inlet - 1 from behind the flange
• Resetting pressure relief valve (PRV) helps prevent the faucet tube from rupturing, and consequent water damage during freezing temperatures, even if a hose is inadvertently left connected to the faucet (hose sold separately), faucet will still freeze if hose is inadvertently left connected to the faucet, however it will not rupture
• Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection
• Anti-siphon protection
• Integral backflow device protects up to 125 psi of backpressure, eliminating the need for an add-on vacuum breaker
• EPDM rubber packing helps prevent leaking behind the packing nut
• Stainless steel seat to prevent from leaking at the back of the faucet
• Full-circle operating threads on the valve body and retainer for a secure fit
• Not intended for continuous use
• Powder-coated die-cast aluminum oval handle for strength
• Brass construction
