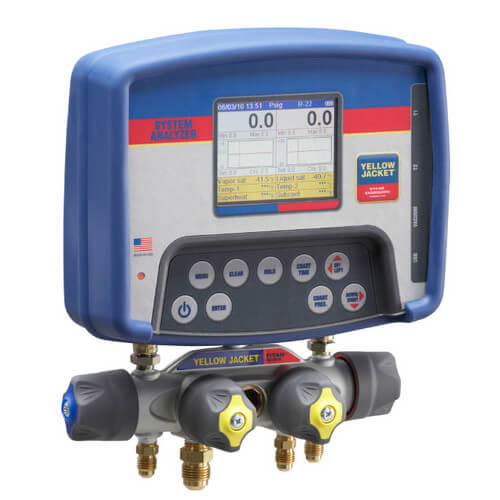

Refrigeration System Analyzer w/ TITAN 4-valve manifold

The display reads in analog, digital or a combination of both, and monitors two pressures, two live temperatures, subcooling and superheat, and saturation temperatures (liquid and vapor) for 84 refrigerants. The new YELLOW JACKET refrigeration system analyzer features a full color graphics display and color-coded diagnostics for intuitive, easy reading.



Features:

• LCD display with adjustable brightness and contrast, protected by an anti-glare, scratch resistant lens
• Nearly 100 NIST refrigerant profiles included (upgradeable via USB for new refrigerants)
• Built-in pressure/temperature chart reference screen for all refrigerants
• Built-in full scale vacuum sensor reads deep vacuum down to 10 microns Dual "K-Type" temperature-compensated sensor ports allow for simultaneous suction and liquid readings
• High accuracy and resolution pressure transducers for fast and sensitive leak detection
• Provides real-time pressure data in selectable time increments: 0.1, 0.2, 0.5, 1 and 2 seconds
• Displays and records max/min pressures
• Data logging for onscreen review or USB export to PC to generate performance/Excel™ work reports
• Tracks and exports date and time, useful for data logging
• Elevation may be entered manually for accurate, automatic pressure compensation
• Selectable "auto power off" and "power saving mode"
• Low battery indicator
• 360° swivel hook stows away when not in use
• Highly weather resistant, glass fiber reinforced, engineering grade thermoplastic housing - fully gasketed for water and dust resistance
• Two-year warranty
• Made in the U.S.A.
