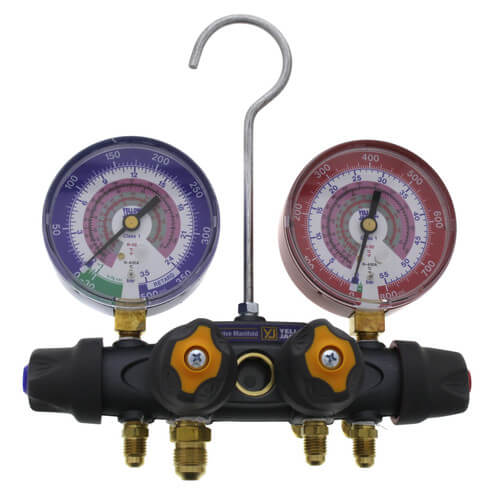

Titan 4 Valve Test & Charging Manifold w/ PLUS II Compact Ball Valve

The Yellow Jacket 49960 TITAN test and charging manifold is the first forged aluminum manifold in the industry. The special aluminum alloy construction of the manifold body makes it lightweight for handling ease with the durability and reliability required for repeated, rugged use. Can be used with refrigerant R-410A only.

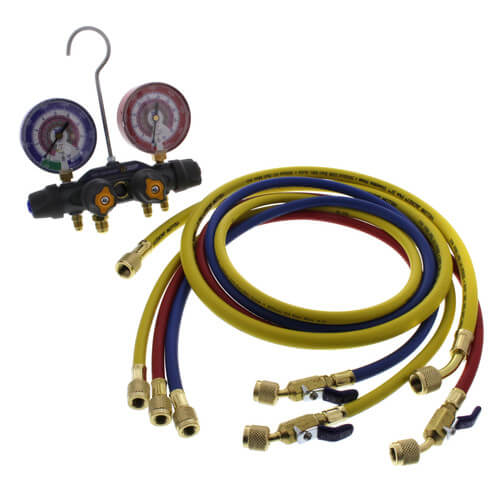

The 49960 comes with 3-1/8" (80 mm) red and blue gauges and (3) 60", (RYB) PLUS II hoses with 3/8" x 45° fittings and compact ball valves. This manifold product is designed for the air conditioning and refrigeration service technician who knows and appreciates the quality and durability of Yellow Jacket Products.

Features:

• Front access for easy field calibration
• Comes with (3) 60", RYB PLUS II Hoses with 3/8" x 45° fittings and compact ball valves
• Large, easy to read 3-1/8" (80 mm) steel case red and blue, 1% accuracy (Class 1) gauges
• Front access for easy field recalibration
• LOW Side Gauge: -30" to 0 to 300 PSI
• HIGH Side gauge: 0 to 800 PSI
• Proven, double "O" ring piston for reliability and long service life.
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extends the life of the seats
• Contoured easy-grip handles for positive control; color coded for ready identification
• Sight glass to easily view refrigerant movement and condition during charging and recovery
• Heavy duty hook won't pull out
• Fourth hose to enable connection to hi/lo sides, refrigerant tank, and recovery unit or vacuum pump for diagnostics, evacuation land charging without switching hoses.
• 3/8" vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings on unit are 1/4")
• Optional protective gauge boots available
• Manifold and hose holder fittings 1/4" - 3/8" - 1/4" - 1/4" unless otherwise identified
• To be used with R-410A refrigerant only
• Limited lifetime warranty on manifold bar and valves, NOT gauges
• Made in the USA
