Description

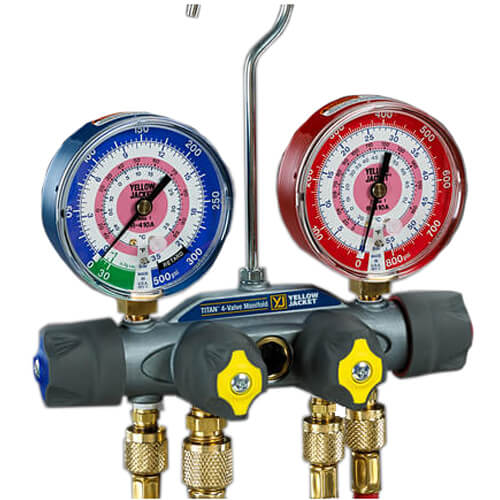

Titan 4 Valve Test & Charging Manifold (R-22/404A/410A)

Features:
  • Manifold only, psi, R22/404A/410A
  • Gauge Reads in Fahrenheit
  • Fourth hose to enable connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
  • Hoses not included
  • 3/8" Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4")
  • Large, easy-to-read 3-1/8" (90 mm) steel case red and blue, 1% accuracy (Class 1) gauges
  • Front access for easy field recalibration
  • Double "O" ring piston for reliability and long service life
  • Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
  • Contoured easy-grip handles for positive control; color-coded for ready identification
  • Sight glass to easily view refrigerant movement and condition during charging and recovery
  • Heavy duty hook won't pull out
  • Manifold and hose holder fittings 1/4"-3/8"-1/4"-1/4" unless otherwise identified
  • Made in the USA
Read more
Manuals (2)
Specs
Product Type:
Manifold
Gauge Diameter:
3-1/8"
Includes:
Gauge
Refrigerant Type:
R-22
R-404A
R-410A
×
