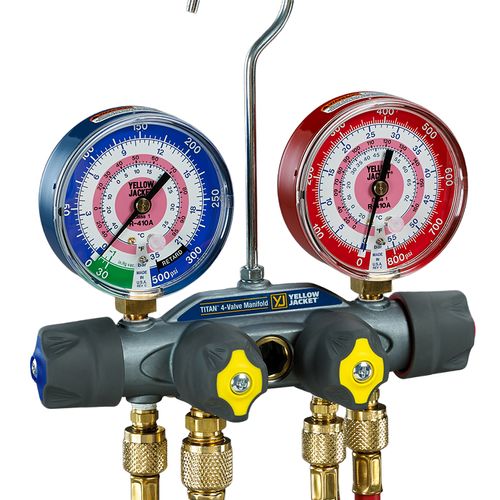

Titan 4 Valve Test & Charging Manifold w/ 60" PLUS II Compact Ball Valve RYB

4-Valve Test & Charging Manifold w/ 60 PLUS II Compact Ball Valve RYB & 3/8" x 45°, R/B gauges, psi for R22/404A/410A

Forged aluminum alloy body makes this unit lightweight for handling ease with the durability and reliability required for repeated use

Features:

• Front access for easy field calibration
• Comes with (3) 60", RYB PLUS II Hoses with 3/8" x 45° fittings and compact ball valves
• Large, easy to read 3-1/8" (80 mm) steel case red and blue, 1% accuracy (Class 1) gauges
• Front access for easy field recalibration
• LOW Side Gauge: -30" to 0 to 300 PSI
• HIGH Side gauge: 0 to 800 PSI
• Proven, double "O" ring piston for reliability and long service life.
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extends the life of the seats
• Contoured easy-grip handles for positive control; color coded for ready identification
• Sight glass to easily view refrigerant movement and condition during charging and recovery
• Heavy duty hook won't pull out
• Fourth hose to enable connection to hi/lo sides, refrigerant tank, and recovery unit or vacuum pump for diagnostics, evacuation land charging without switching hoses.
• 3/8" vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings on unit are 1/4")
• Optional protective gauge boots available
• Manifold and hose holder fittings 1/4" - 3/8" - 1/4" - 1/4" unless otherwise identified
• To be used with R-410A refrigerant only
• Limited lifetime warranty on manifold bar and valves, NOT gauges
• Made in the USA
