Description
Note: This model comes packaged with Piggyback Variable Level Float Switch.

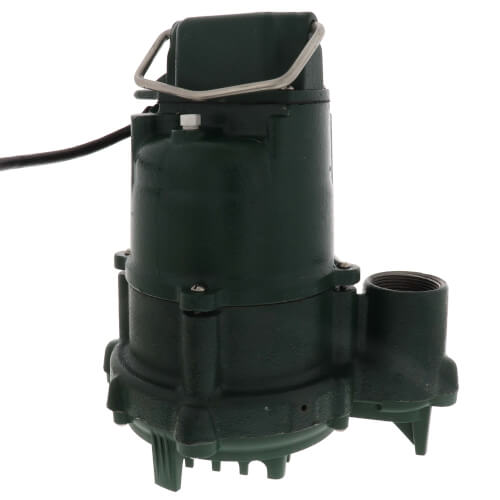

Zoeller BN140 Effluent Submersible Pump for Septic Tank, Low Pressure Pipe (LPP) and Enhanced Flow STEP Systems.

This submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. It includes a powder coated epoxy finish to prevent corrosion and is designed to provide great heat dissipation from the motor, ensuring a long service life.

Features:
  • Durable cast iron construction

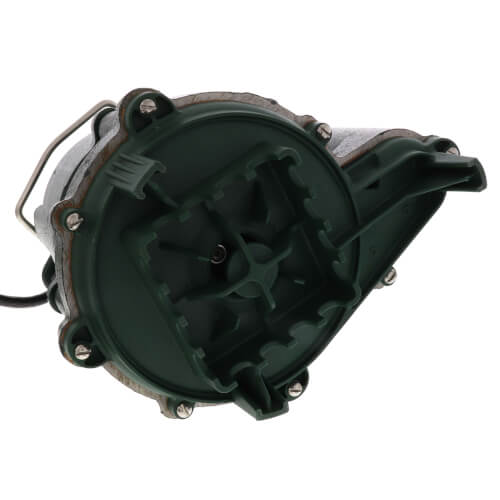

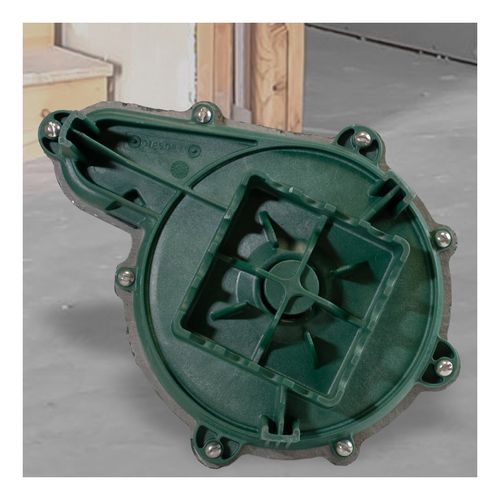

  • Model 151 comes standard with a glass-filled polypropylene base
  • Corrosion resistant powder coated epoxy finish
  • Stainless steel lifting handle
  • Assembled with stainless steel bolts
  • Non-clogging engineered thermoplastic vortex impeller design
  • Model 151 - 1/3 HP passes 1/2" spherical solids
  • Motor - 60 Hz, 3450 RPM, oil-filled, hermetically sealed, automatic reset thermal overload protected
  • Carbon/Ceramic seals
  • Upper sleeve bearing and lower ball bearing running in bath of oil
  • 20 ft. UL Listed power cord with molded 3-wire plug

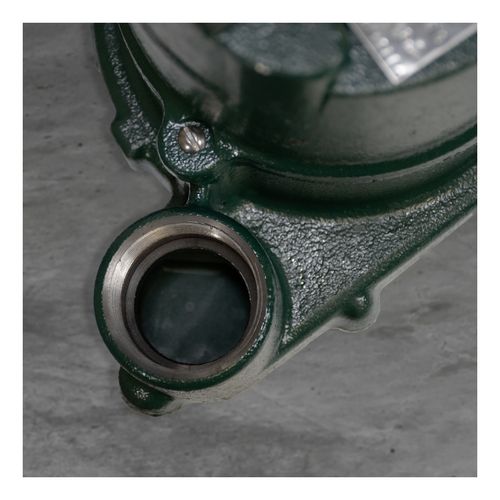

  • 1-1/2" NPT vertical discharge

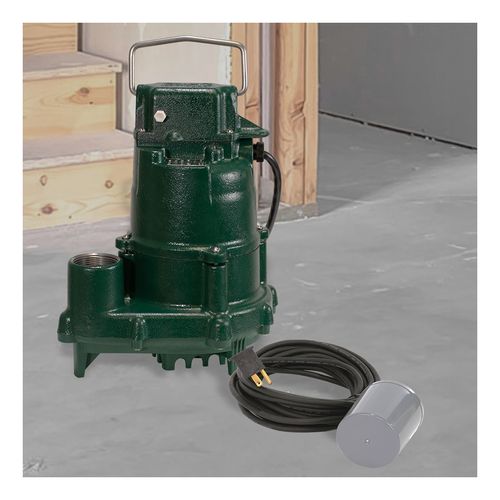

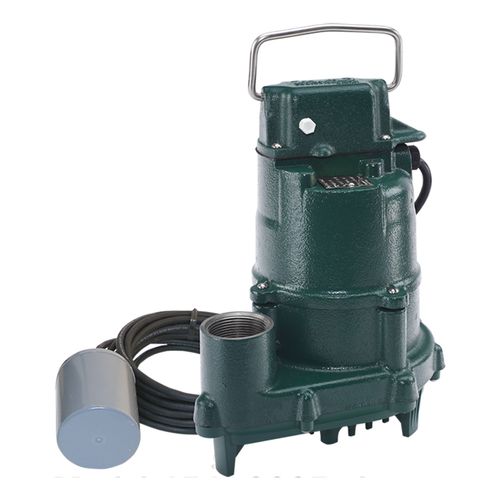

  • BN and BE standard models include a 20 ft. variable level float switch
  • Operates at temperatures to 130°F (54°C) in effluent applications
  • All models include a 1-1/2" x 2" PVC adapter fitting
Hide Description
Manuals (1)
Specs
Application:

Plumbing

Effluent

Material:

Cast Iron

Voltage:

277

115v

Hertz:

60

Shutoff Head (ft.):

30'

Flow at 5 FT Head:

50 GPM

Phase:

1

RPM:

3450

Cord Type:

UL Listed 3-Wire Neoprene Cord & Plug

Cord Length:

20'

Amperage:

12

Modes:

Auto

×
