Flow-Mate E189 High Head Single Seal Manual Effluent Pump (2 HP, 230V)

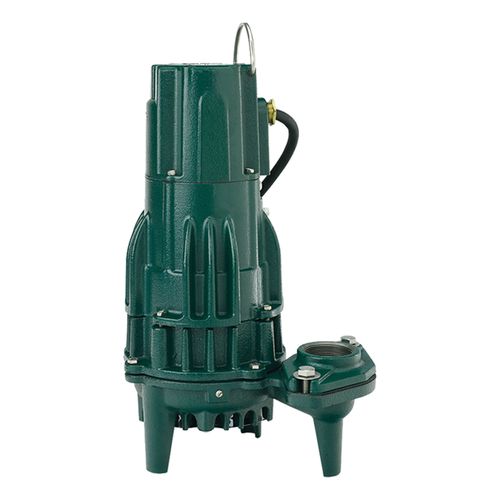

Note: Image displayed does not represent actual product.

Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems. This Flow-Mate submersible pump is rated for effluent or dewatering applications

Features:

• Non-clogging vortex impeller design bronze class 88-8-0-4 (180 series)
• Enclosed impeller design (model 191)
• Durable cast iron construction
• Cast iron switch case, base, motor and pump housing
• No sheet metal parts to rust or corrode
• Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
• Oil filled, hermetically sealed, automatic reset thermal overload protection (1 Ph only)
• Maximum temperature for effluent or dewatering: 130°F (54°C), WD189 120°F (49°C)
• Variable level control systems available
• Neoprene square ring & gasket
• Stainless steel carbon and ceramic rotary shaft seal
• Upper and lower ball bearing running in bath of oil
• All 180/4180 series pumps pass 3/4" (19 mm) spherical solids.
• Model 191 passes 5/8" (16 mm) spherical solids.
• On point: 14-3/4" (37.5 cm)
• Off point: 5-1/4" (12.7 cm) (automatic units)
• Major width: 12-3/4" (32.4 cm) (single seal pumps)
• Major height: 19-5/16" (49.1 cm) (single seal pumps)
• 1-1/2" NPT discharge with 2" or 3" flange available
• Model 191 not available with 3" flange
• Corrosion-resistant, powder coated epoxy finish
• Automatic units not recommended for use in effluent systems
• Automatic reset thermal overload protection (single phase only)
