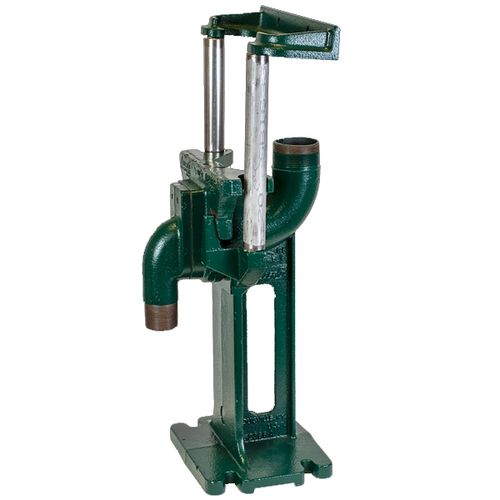

1-1/4" Z-Rail Disconnect System (Ductile Iron)

Our Z-Rail System simplifies the installation and removal of a submersible pump from a basin. This design prevents the need to enter into the basin which is typically designated as a confined space entry. The slide disconnect will mount to the pump then will slide down the 2 guide rails to direct it to its final resting location in the bottom of the basin.  The weight of the pump and an 0-ring gasket prevents any overspray when the pump is operational.  The Z-Rail system reduces time at the job site when installing or removing the pump for maintenance.  3/4" schedule 40 guide rail piping is not included and should be supplied locally.

Features:

• Guide rails direct the pump to and from the disconnect fitting. Systems are supplied complete with disconnect fitting, guide plate, rail guide, and upper rail support bracket
• For concrete, steel, or fiberglass tanks
• No pull rods or hold down rods
• Lifting bails are required for specific pump models. Refer to FM0787 for selection guide. Stainless steel lifting cables available
• 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
