Model E53 Mighty-Mate Non-Automatic Cast Iron Effluent Pump - 230 V, 0.3 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$304.50 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
15'
Cast Iron
230V
1/3 HP
43 GPM
4.8 Amps
Description
–
Submersible pump for dewatering (sump) or effluent (septic tank systems)
Features:
Model 53 Specific Features:

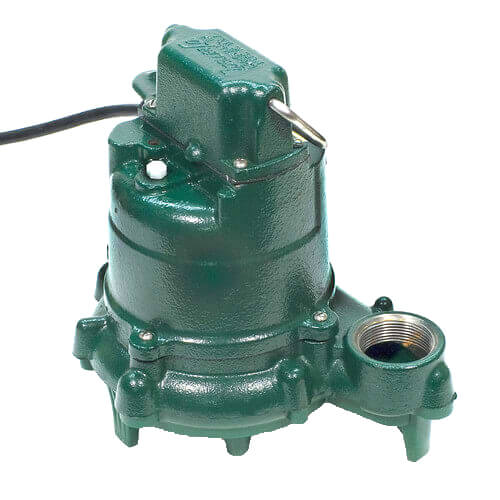

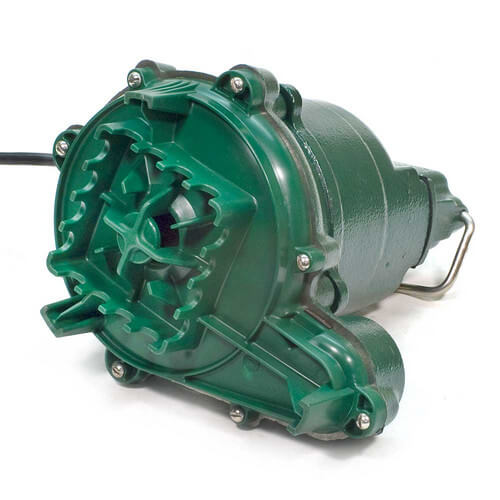

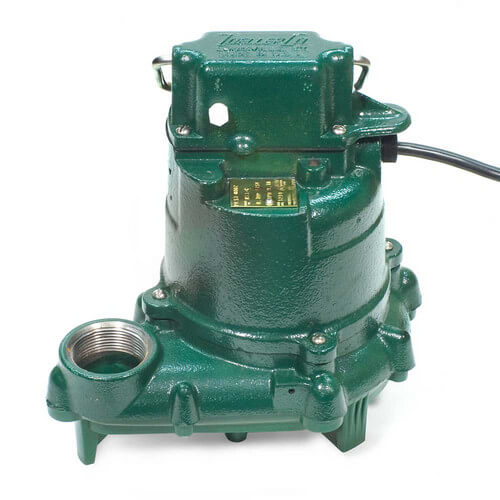

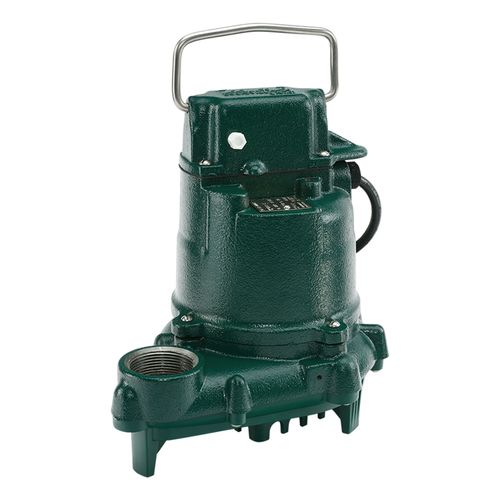

NOTE: Image depicts automatic model. Image #2 depicts vortex impeller.
Features:
- Float operated, submersible (NEMA 6) 2 pole mechanical switch & variable level long cycle systems available
- Corrosion resistant powder coated epoxy finish
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard and handle
- No screens to clog
- Watertight neoprene square ring between motor and pump housing
- Solid buoyant polypropylene float
- Oil-filled, hermetically sealed, automatic reset thermal overload protected motor
- Upper and lower sleeve bearings running in bath of oil
- Entire unit pressure tested after assembly
- Carbon and ceramic shaft seal
- Maximum temperature for effluent or dewatering 130°F (54°C)
- Passes 1/2" spherical solids
- 1-1/2" NPT discharge
- On point: 7-1/4", Off point: 3"
- Watertight and dust tight
- Permanently oiled bearings

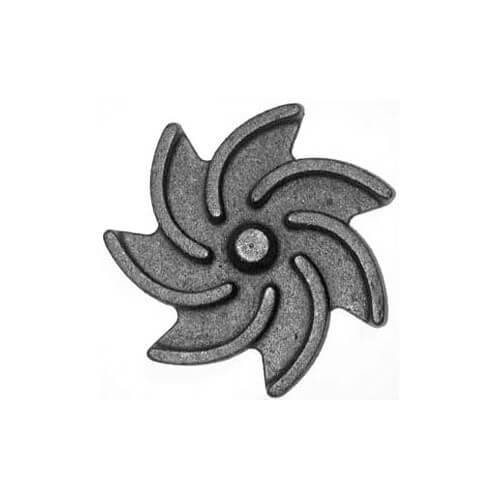

- Impeller Type: Non-clogging vortex impeller
- Reserve Powered Design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
Model 53 Specific Features:
- Cast iron switch case, motor and pump housing

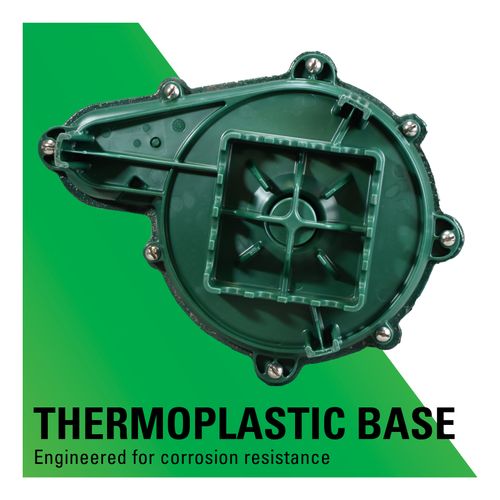

- Engineered thermoplastic base
- Engineered, glass filled, plastic impeller with metal insert
- Stainless steel guard and handle
- Lower and upper bearings, oil fed cast iron
NOTE: Image depicts automatic model. Image #2 depicts vortex impeller.
Specs
–
| Shutoff Head (ft.): | 19.25' |
|---|---|
| Cord Length: | 15' |
| Type: | Manual |
| Application: | Plumbing |
| Material: | Cast Iron |
| Voltage: | 230V |
| Horse Power: | 1/3 |
| Flow at 5 FT Head: | 43 GPM |
| Amperage: | 4.8 |
| Phase: | 1 |
| Hertz: | 60 |
| RPM: | 1550 |
| Cord Type: | UL Listed, 3-Wire Cord & Plug |
| Height (Inches): | 10.0625" |
| Width (Inches): | 10-3/32" |
