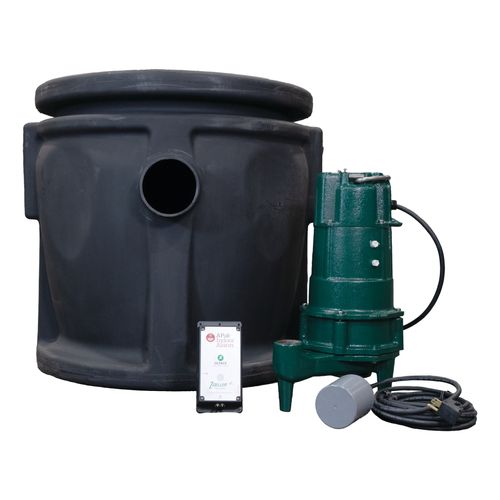

24" x 24" Preassembled Grinder Pump System w/ BN807, 1 HP, 115V Pump and Alarm
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,937.65 each
Backorder
MANUALS (2)
Lift Gate
–
This product weighs 100 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24" x 24"
115V
1 HP
BN807 Pump
11 Amps
Description
–
Preassembled 24" x 24" (61 x 61 cm) Grinder Pump System. Complete and job ready for fast installation with new PSF cover designed with the Contractor in mind.
Systems include
- (1) 1/2, 3/4 or 1 HP Grinder pump
- (1) 24" x 24" (61 x 61 cm) poly-molded basin
- (1) PSF cover with 2V2D
- Internal 2" (DN50) PVC discharge pipe
Pump Features
- Cast iron construction (models 803, 805, 807)
- Tri-Slice cutter technology
- Thermal overload protection
- Non-clogging vortex impeller
- 3 year limited warranty on Models 803, 805, 807

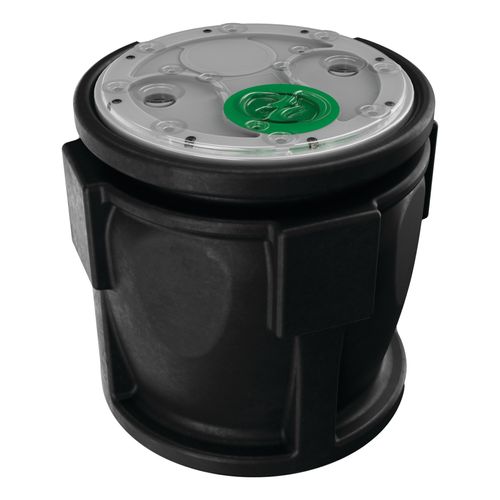

Basin Features
- Shipped with clear construction cover
- Easily removable access port, no bolts to remove
- Removable float tree
- Molded torque stops for added pump support
- Threaded 2" vent and 2" discharge piping connections
- 24x24 basin for shallow burial applications
- 24" (61 cm) depth for easier installation in troublesome areas
- 41 gallon (155 liter) capacity (exceeds 18 x 30)
- 25 gallon (95 liter) capacity below 4" inlet
- Anti-flotation device (AFD) helps to eliminate basin from "floating"
- 360 Degree molded handle (acts as secondary AFD)
- Stackable for storage/shipping
- Fully assembled
- High water alarm available
Specs
–
| Size: | 24" x 24" |
|---|---|
| Voltage: | 115V |
| Application: | Plumbing |
| Horse Power: | 1 |
| Used With: | BN807 Pump |
| Amperage: | 11 |
| Vent Size: | 2" |
| Includes: | Alarm |
