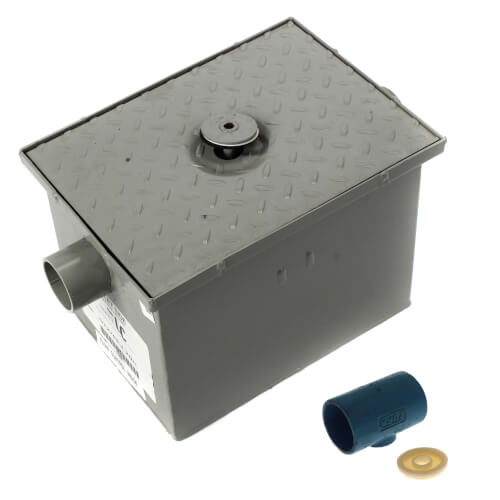

| Product Type: | Standard Grease Trap |
|---|---|
| Width (Inches): | 9-7/8" |
| Height: | 10" |
| Material: | Steel |
| Flow Rate (GPM): | 4 |
| Inlet Type: | No Hub |
| Length: | 15-7/8" |
| Capacity (lbs): | 8 lbs |
| Inlet Size: | 2" |
| Outlet Size: | 2" |
| Outlet Type: | No Hub |
| Application: | Plumbing |
Questions?
Compare Similar Products
You May Also Need
Product Reviews
I would buy this product again.
Great product
WOULD PURCHASE AGAIN
Man Cave Trap
I would buy this product again
Prefect for what I needed.
food stand
Product Q&A
5 QuestionsQ: how does the lid cove off- how do you clean it?
Asked by barbie 10 years ago
Add your answer
The one we purchased opened with one allen head bolt. After setting overnight, before water runs throw it in the morning, scoop the hardened grease off the top. I used a Styrofoam cup with one side cut to make a perfect scoop. After scooping, I ran hot soapy water through it a few minutes to help flush out the standing water.
Q: Can I connect 2" PVC to my inlet and outlet buy using rubber cup links or is there another way. I see the tank is all steel that is good. I cannot tell buy the picture how to connect my PVC. I will be installing the trap under my sink.
Asked by The want to be plumber 12 years ago
Add your answer
Yes, using rubber couplings to join the PVC pipe to the trap will provide a strong seal and should give you many years of service. If the PVC pipe is over 4 ft. long or is located where someone may rest a foot on it, etc. then it would be best to support it to avoid stressing the coupling.
I utilized 2" rubber flexible connection between the tank connections and PVC piping.
I used a rubber adapter/reducer on the outlet to get the right diameter. I had the smaller trap, possibly 18" x 18". The inlet was done with the standard 1 ½ " sink draining into a 3" elbow connected to the trap. As long as the drain was a couple inches inside the elbow, overflow was never a problem. The rationale for the open elbow allows for air to flow as the liquid enters to avoid any type of vacuum effect fluid back-up. It has been several years, but I am pretty sure I ran a 2" outlet out and into a 4" main drain line. But I definitely remember using the rubber couplings. Hope this helps you.
Q: is the 8# large enough for a large home kitchen
Asked by chuck 14 years ago
Add your answer
Verified Reply- PexSupply StaffIt depends on the total size of the sinks. We'd recommend that you try our Grease Trap Sizing Calculator at the link below. http://www.pexsupply.com/pex/control/GreaseTrapCalculator
Q: Is this trap PDI approved?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffOnly the GT2700 sizes 20 - 50 are PDI approved.
Q: does the # 8 grease trap sit above the floor?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffIt can sit above the floor or be buried. Either way, you must have access to the the top removal panel for cleaning.
