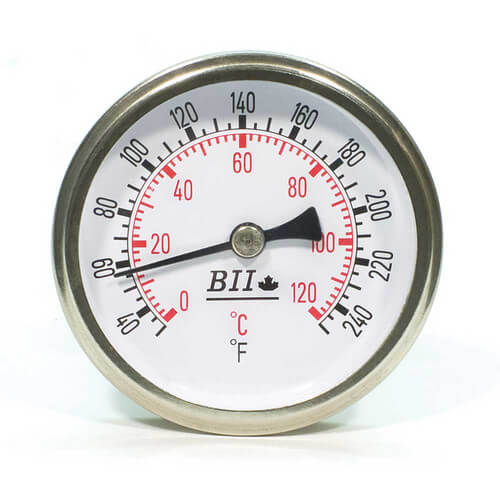

1/2" NPT, 2.5" Face, Snap Well Thermometer Zoom

1/2" NPT, 2.5" Face, Snap Well Thermometer

SKU:TW25-CB2-250-25

Brand: Boshart

Boshart
Qty Price
$18.10
/ each
$61.00 / box (5 units x $12.20)
In Stock! Ships in 24-48 Hours
(92 Available)
0

Resources

Specs

Dial Size: 2-1/2"
Connection Type: 1/2" NPT
Measures: Fahrenheit
Celsius
Temperature Range (F): 32°-250°F
Temperature Range: 0° to 120°C
Length (Inches): 1"
Min Temp (F): 32°F
Max Temp (F): 250°F
Accuracy: +/- 2%
Application: Temperature

Description for Boshart TW25-CB2-250-25

Features:

  • 2-1/2" Dial
  • General purpose industrial thermometer
  • Coiled bi-metal element
  • Bulb - Stem with detaching thermowell
  • Accuracy : 2%
  • Working Range 32-250°F Includes well
  • 6 Bar Maximum Thermowell rating
  • Aluminum Case / Acrylic Window
  • Dual Scale °F & °C
  • Stainless Steel Thermowell on Model SS25<

1/2" NPT, 2.5" Face, Snap Well Thermometer

REVIEW SNAPSHOT®

by PowerReviews
Boshart1/2" NPT, 2.5" Face, Snap Well Thermometer

4.8

(based on 6 reviews)

Ratings Distribution

  • 5 Stars



    (5)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Pros

    Cons

      Best Uses

          • Primary use:
          • Personal (6)

        Reviewed by 6 customers

        Sort by

        Displaying reviews 1-6

        Back to top


        5.0

        i would buy this product again

        By jolly roger

        from massachusetts

        Verified Buyer

        Pros

          Cons

            Best Uses

              Comments about 1/2" NPT, 2.5" Face, Snap Well Thermometer:

              snap well thermometer snaps off for cleaning less of a chance of breaking the glass. great job

              • Primary use:
              • Personal

              5.0

              Easy to read Thermometer

              By Rooster

              from Atlanta Georgia

              Verified Buyer

              Pros

                Cons

                  Best Uses

                    Comments about 1/2" NPT, 2.5" Face, Snap Well Thermometer:

                    Very easy to install and read.

                    • Primary use:
                    • Personal

                    5.0

                    Works for what I bought it for!

                    By Dan

                    from Rhinelander, WI

                    Verified Buyer

                    Pros

                      Cons

                        Best Uses

                          Comments about 1/2" NPT, 2.5" Face, Snap Well Thermometer:

                          It measures the temperature in my cooker, I love the fact I can pull it out of the base so I won't break it when I clean my cooker!

                          • Primary use:
                          • Personal

                          (1 of 1 customers found this review helpful)


                          5.0

                          Works just as you'd expect.

                          By Randy

                          from Bulls Gap, TN

                          Verified Buyer

                          Pros

                            Cons

                              Best Uses

                                Comments about 1/2" NPT, 2.5" Face, Snap Well Thermometer:

                                We are using this thermometer in the return line of a solar hot water collector and it is working just fine. It was flawless from the start and continues to be flawless.

                                • Primary use:
                                • Personal

                                (1 of 1 customers found this review helpful)


                                5.0

                                Great quality for the cost.

                                By JFK

                                from Commack, NY

                                Verified Buyer

                                Pros

                                  Cons

                                    Best Uses

                                      Comments about 1/2" NPT, 2.5" Face, Snap Well Thermometer:

                                      clear scale, general purpose guage for reading water temp.

                                      Install in 3/4" tee with reducing bushing to 1/2"...

                                      • Primary use:
                                      • Personal

                                      4.0

                                      Good general purpose thermometer

                                      By PrecisionMan

                                      from Vernal, UT

                                      Verified Reviewer

                                      Pros

                                        Cons

                                          Best Uses

                                            Comments about 1/2" NPT, 2.5" Face, Snap Well Thermometer:

                                            Great for monitoring temps generally, but not accurate enough for calculating BTU/H transfer rates and things.

                                            • Primary use:
                                            • Personal

                                            Displaying reviews 1-6

                                            Back to top

                                            Q&A: Ask the Questions, share answers

                                            Do you have questions about this product?

                                            get answers from real customers and in-house experts with AnswerBox.

                                            10 Questions | 25 Answers
                                            Displaying questions 1-10
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              Is this gauge suitable for a working pressure of 100 psi My second try for an answer -- help please.
                                              Asked on 9/15/2014 by Mick the plumber from San Francisco, CA

                                              1 answer

                                              • VERIFIED BUYER

                                                A:

                                                Mick, The gauge itself is unaffected by pressure as it simply slides into the snap well. The snapwell supplied is rated for 6 bar or 87 psi. You may be able to get a snap well rated for a higher pressure. Dan

                                                Answered on 9/16/2014 by Anonymous
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              Is this temperature gauge rated for 100psi service
                                              Asked on 9/11/2014 by mick from SAN Francisco,ca

                                              1 answer

                                              • VERIFIED BUYER

                                                A:

                                                Mine had a brass insert that would easily handle 100 psi... The gauge
                                                itself doesn't touch what is inside the pipe. Only heat transfer to
                                                display the temp. Worked very well...
                                                Denton

                                                Answered on 9/15/2014 by Anonymous
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              what is the rated operating pressure of this temperature gage
                                              Asked on 9/8/2014 by retired mechanical engineer from Calif mid coast

                                              4 answers

                                              • VERIFIED BUYER

                                                A:

                                                If I remember correctly, this temp gauge sits in a dry well. The dry well is a brass sweat well, or an NPT well. The gauge itself isn't subject to any system pressure. I say "if I remember correctly" since I've used different manufacturers and different products over the years. I hope this helped.

                                                Answered on 9/9/2014 by Anonymous
                                              • VERIFIED BUYER

                                                A:

                                                The gauge only sees atmospheric pressure. The thermowell is rated to 6
                                                bar, as stated in the description.

                                                Answered on 9/9/2014 by Anonymous
                                              • VERIFIED BUYER

                                                A:

                                                The well is independent of the actual temperature gauge so the pressure in
                                                the system does not affect the gauge (gauge snaps in and out of the well).
                                                The well is designed for normal working pressures of most residential water
                                                systems (schedule 40 pipe, pex, type L or M copper) and I would suspect can
                                                take much higher pressures but I do not know what that is. If thicker wall
                                                pipe like schedule 80 is used and the system is to be tested with nitrogen
                                                due to extremely high pressures then I can't answer the question.

                                                Answered on 9/9/2014 by Anonymous
                                              • VERIFIED BUYER

                                                A:

                                                80psi

                                                Answered on 9/8/2014 by Anonymous
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              you guys are confusing me. I want to put these probes in a 3/4" threaded tee. Will a 3/4 x 3/4 x 1/2 tee put the probe in the stream or will it hit the back of the tee. If it hits the back of the tee could I use 3/4 x 3/4 x 3/4 tee with a 3/4-1/2 bushing?
                                              Asked on 7/13/2013 by steve from mottville

                                              2 answers

                                              • VERIFIED BUYER

                                                A:

                                                Steve,

                                                The threaded insert that comes with these thermometers will hit the back of a 3/4 X 3/4 X 1/2 inch tee if using the side port. Also, they're pretty think and tend to add a lot of head to the system when installed like that, so even if you use a bushing and a 3/4 x 3/4 X 3/4 tee, you may want to space it out a little to prevent any blockage in the tee.
                                                I use these a lot in hydronic furnace installs and typically use copper tee's and a short pipe with a threaded female coupler at the end. I still get great temp readings and the well doesn't block the water flow.

                                                Hope this helps.

                                                -Mark

                                                Answered on 7/13/2013 by Anonymous
                                              • VERIFIED BUYER

                                                A:

                                                It would bottom out in the T on a 3/4" x 3/4" x 1/2". The 3/4" x 3/4" x
                                                3/4" would work. You would need to have the flow make the 90 degree turn
                                                and the probe would need enough pipe connected to the T to go straight
                                                through one end and out the other.

                                                Answered on 7/13/2013 by Anonymous
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              How long is the probe? I am looking for the shortest temp/pressure gauge you have. Thanks.
                                              Asked on 3/17/2013 by mark

                                              1 answer

                                              • CUSTOMER CARE

                                                A:

                                                The probe is 1" long starting from the end of the male thread.

                                                Answered on 3/25/2013 by PexSupply Staff from NY
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              What is the thread size of the thermowell that is included?
                                              Asked on 5/1/2012 by J

                                              7 answers

                                              • VERIFIED BUYER

                                                A:

                                                The thread was 1/2" NPT.

                                                Answered on 5/1/2012 by Another PexSupply Customer
                                              • CUSTOMER CARE

                                                A:

                                                This thermometer has 1/2" male threads.

                                                Answered on 5/1/2012 by PexSupply Staff from NY
                                              • VERIFIED BUYER

                                                A:

                                                1/2 inch npt is what it looks like
                                                Sent from my iPhone

                                                Answered on 5/1/2012 by Another PexSupply Customer
                                              • VERIFIED BUYER

                                                A:

                                                it’s 1/2” it is right on the description

                                                Answered on 5/1/2012 by Another PexSupply Customer
                                              • VERIFIED BUYER

                                                A:

                                                1/2" MIP

                                                Answered on 5/1/2012 by Another PexSupply Customer
                                              • VERIFIED BUYER

                                                A:

                                                It's 1/2 male ips.

                                                Answered on 5/2/2012 by Another PexSupply Customer
                                              • VERIFIED BUYER

                                                A:

                                                1/2

                                                Answered on 5/2/2012 by Another PexSupply Customer
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              What is the proper brass or copper fitting for this to be used with 3/4" copper pipe?
                                              Asked on 3/13/2012 by Paul from Boxborough, MA

                                              6 answers

                                              • VERIFIED BUYER

                                                A:

                                                Usually installed in the outlet of a tee. The fitting used depends on the specific location in the piping. If the tee is 3/4-3/4-3/4, use a 1/2"fpt x 3/4"cu threaded adapter or a 1/2"fpt x 3/4" cu fitting adapter. The object is to allow the tip of the stem on the well to extend into the fluid flow path but not touch the wall of the fitting. Other options are available, including a 3/4" cu x fpt threaded adapter with a 3/4" x 1/2" threaded brass bushing or a 1/2" fpt x 3/4" face bushing installed directly into the tee fitting. As long as the tip of the well is in the fluid flow path, the assembly doesn't leak and can be taken apart for future replacement or service, the thermometer will do it's job.

                                                Answered on 3/13/2012 by Another PexSupply Customer
                                              • VERIFIED BUYER

                                                A:

                                                Use a 3/4x3/4x1/2 tee, and a 1/2" female NPT adapter.
                                                Sent from my iPhone

                                                Answered on 3/13/2012 by Another PexSupply Customer
                                              • VERIFIED BUYER

                                                A:

                                                You would need a 3/4 to 1/2 to 3/4 copper T with a sweat 1/2" threaded female piece. The gauge will thread right in. You will need some Teflon tape for your threads as well.
                                                Sent from my iPhone

                                                Answered on 3/14/2012 by Another PexSupply Customer
                                              • CUSTOMER CARE

                                                A:

                                                We would recommend parts CP12-12 and TB12-12-08. Without a bushing, the probe on the thermometer would be too long to fit in a tee.

                                                Answered on 3/14/2012 by PexSupply Staff from NY
                                              • VERIFIED BUYER

                                                A:

                                                3/4" x 3/4" x 1/2" CxCxF Tee
                                                SKU:CP12-121208
                                                Brand: Cello

                                                Answered on 3/15/2012 by Another PexSupply Customer
                                              • VERIFIED BUYER

                                                A:

                                                A couple options:
                                                1. Install this thermometer into a 3/4"x1/2" Copper x Female Adapter next to a 3/4" Tee on the line to monitor temperature. This method isn't the most accurate as it places the thermometer too far from main line.

                                                2. Install this thermometer into a 1/2" FTG x Female Street Adapter which is soldered into a 3/4" x 3/4" x 1/2" tee on the line to monitor.  This is the preffered method as it places the thermowell of the thermometer directly into the flow of the 3/4" copper line.

                                                Answered on 3/16/2012 by Another PexSupply Customer
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              Will this gauge fit a Letro probe style well?
                                              Asked on 4/13/2011 by kooch from Incline, NV

                                              1 answer

                                              • CUSTOMER CARE

                                                A:

                                                This gauge is 1/2" NPT and has a probe that extends about an inch beyond the thread.

                                                Answered on 4/19/2011 by PexSupply Staff from NY
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              Can this be used in a plumbing application to measure in-line water temperature? ie, measure/monitor the temperature of the water coming out of a pool heater...
                                              Asked on 3/5/2011 by Mike from Lincoln, CA

                                              1 answer

                                              • CUSTOMER CARE

                                                A:

                                                Yes, this thermometer can be used for that application.

                                                Answered on 3/7/2011 by PexSupply Staff from NY
                                            • 1/2" NPT, 2.5" Face, Snap Well Thermometer

                                              Q:

                                              Does this come with a well? Or do I need to purchase this seperately?
                                              Asked on 1/2/2011 by Anonymous

                                              1 answer

                                              • CUSTOMER CARE

                                                A:

                                                The well is included with this unit.

                                                Answered on 1/7/2011 by PexSupply Staff from NY
                                            Displaying questions 1-10
