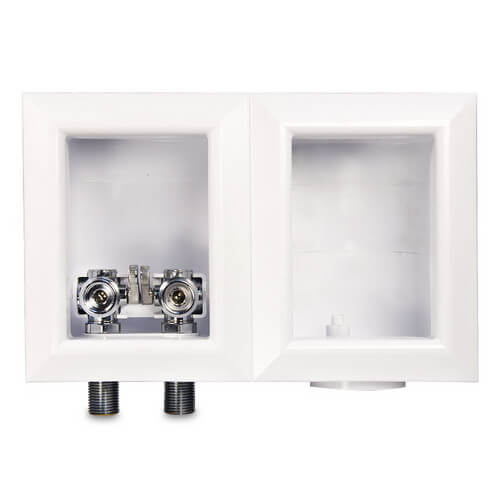

Ox Box Washing Machine Outlet Box Standard Pack - 1/2" Male PEX Connection
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (3)
Non-Potable Water Applications
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
- Boxes mount securely to stud
- Separates supply and drainage systems into two stud bays
- Separate boxes offer flexible layout
- Durable ABS stands up to job site abuse
- Drain knockout is easy to remove with pliers
- Debris covers included to protect boxes from drywall mud and paint
- High-quality quarter-turn ball valves
- 3/4" male hose-thread outlet connections
- 1/2" male PEX connection
Specs
| Product Type: | Washing Machine Outlet Box |
|---|---|
| Application: | Washing Machine |
| Outlet Size: | 3/4" |
| Outlet Type: | Male Threaded |
| Inlet Size: | 1/2" |
| Inlet Type: | PEX Crimp |
| Material: | ABS |
| Features: | 1/4 Turn Ball Valves Includes Frame |
| Max Temp (F): | 250°F |
| Max Pressure (PSI): | 150 |
Questions?
Product Reviews
Be the first to write a review.
Product Q&A
4 QuestionsQ: What is the dimension of the supply box?
Asked by Harmik 12 years ago
Add your answer
The dimension of the supply box can be found on Sioux Chief's website belowhttp://www.siouxchief.com/docs/default-source/spec-sheets/specs-sheets-supply/696-series---washing-machine-outlet-box-with-drain-box---oxbox.pdf?sfvrsn=6 In case the link doesn't work, these are the dimensions found on the datasheet:A: Frame width 11½"B: Frame height 7¼"C: Frame opening width 3⅝"D: Frame opening height 5⅛"E: Rough-in box width 4" (single box) 10" (double with clip)F: Rough-in box depth 3½"G: Rough-in box height 5½"
Q: can you use pex-A expansion fitting or does this require a crimp?
Asked by aj 13 years ago
Add your answer
Verified Reply- PexSupply StaffThis box has PEX crimp connections. Part 696-2303WF is the same box with PEX expansion connections.
Q: You are saying Pex connection. Is it with the Sharkbite/Gatorbite fitting or the crimp fitting. Looking for one with 1/2" male threads, dual boxes, to use with bite fittings. Thank you.
Asked by Jackie 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis box has crimp/clamp fittings. If you want to connect SharkBite fittings to a similar box, we'd suggest one that has male threads. To that fitting, you could connect a female threaded x SharkBite fitting.
Q: Does this include both the supply and the drain outlet boxes?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it does.
