0015 3-Speed Cast Iron Circulator - Integral Flow Check, 1/20 HP w/ Rotated Flanges
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
0015-MSF2-1IFC has been discontinued
Discontinued November 27, 2014
This product was discontinued by the manufacturer.
MANUALS (4)
This item replaces: 00R-MSF1-1IFC, 00R-MSF1-6IFC
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
0015 3-Speed Cast Iron Circulator - Integral Flow Check, 1/20 HP w/ Rotated Flanges
Product Highlights
–
115V
1/20 HP
3 Year Warranty
Flanged x Flanged Connection
18 MAX GPM
125 MAX PSI
Description
–
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

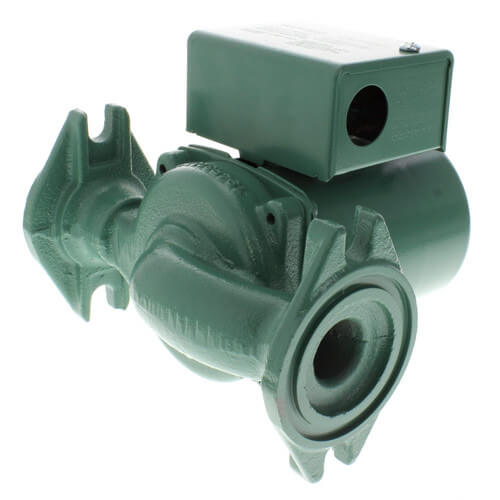

Image Represents 0015-MSF2-IFC, this model is same pump but with Rotated Flanges.
The rugged 00R 3-Speed Radiant Pump now has a new and improved impeller design, reducing noise and improving power consumption. Watts and amp ratings have been reduced by up to 10% and noise has been improved to 007 levels. This pump is specifically designed for the flow and head requirements of today's radiant heat systems. Its 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. The 00R 3-Speed Radiant pump is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 00R delivers the highest starting torque in its class and a removable, high-flow Integral Flow Check (IFC+) that prevents gravity flow, reduces installation costs and improves pump performance.
Features:
* 3-Speed Switch
* Fine tune to system requirements
* Highest performance & starting torque in class
* Heavy duty construction for longer life
* 4-bolt universal flange (0010 only)
* Removable high-flow Integral Flow Check (IFC)
* Replaceable cartridge design
* Quiet, efficient operation
* Self lubricating, no mechanical seal
* Wide range of applications
* Cast Iron, flanged construction
Replacement Parts List:
Casing O-Ring: 00R-001RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 00R-005RP
Valve Assembly Trans/Relay: 0010-025RP
Image Represents 0015-MSF2-IFC, this model is same pump but with Rotated Flanges.
The rugged 00R 3-Speed Radiant Pump now has a new and improved impeller design, reducing noise and improving power consumption. Watts and amp ratings have been reduced by up to 10% and noise has been improved to 007 levels. This pump is specifically designed for the flow and head requirements of today's radiant heat systems. Its 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. The 00R 3-Speed Radiant pump is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 00R delivers the highest starting torque in its class and a removable, high-flow Integral Flow Check (IFC+) that prevents gravity flow, reduces installation costs and improves pump performance.
Features:
* 3-Speed Switch
* Fine tune to system requirements
* Highest performance & starting torque in class
* Heavy duty construction for longer life
* 4-bolt universal flange (0010 only)
* Removable high-flow Integral Flow Check (IFC)
* Replaceable cartridge design
* Quiet, efficient operation
* Self lubricating, no mechanical seal
* Wide range of applications
* Cast Iron, flanged construction
Replacement Parts List:
Casing O-Ring: 00R-001RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 00R-005RP
Valve Assembly Trans/Relay: 0010-025RP
Specs
–
| Amperage: | 0.98 |
|---|---|
| Type: | 3-Speed Pump |
| Material: | Cast Iron |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Horse Power: | 1/20 |
| Connection Size: | 1" 1-1/2" 3/4" 1-1/4" |
| Flow Range (GPM): | 0-18 |
| Max Flow (GPM): | 18 |
| Max Head (Ft): | 21 |
| Head Range (ft.): | 0-21 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3250 |
| Temperature Range (F): | 40°F to 230°F |
| Connection Type: | Flanged x Flanged |
| Warranty: | 3 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Type
Material
Application
Voltage
Max Pressure (PSI)
CURRENT ITEM
0015 3-Speed Cast Iron Circulator - Integral Flow Check, 1/20 HP w/ Rotated Flanges
SKU: 0015-MSF2-1IFC
(14)
3-Speed Pump
Cast Iron
Heating
115V
125
4 Replacement Parts
Taco Capacitor for Select 003-008 Models
SKU: 007-002RP
TacoSleeve Gasket, 920-007RP
SKU: 920-007RP
Taco
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.5 out of 14 reviews
92% would recommend this product
5 star
79%
4 star
7%
3 star
7%
2 star
0%
1 star
7%
Most Liked Positive Review
So far so good
I installed the Taco pump on a heating system I put in. The pump has operated flawlessly and since my system is somewhat of experimentation I need to vary the flow. The 3 speeds did that for me. I was able to fine tune the system. Plus the unit is as quiet as a single speed.
As for PexSupply I could not happier with the price and quick service. I have added them to my favorites on my computer for future projects.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Decent mid power pump
Could be better. Not near as powerful and heavy duty as the brand I replaced. Taco pump can't handle the heat as well either before it starts to rattle. This pump is probably great for smaller or less load projects other than outdoor wood furnace applications with 100' + of water line to circulate.
Showing 1-10 of 14 reviews
I never got the right pumps sent to me.
I never got the right pumps sent to me. I requested rotated flange pumps and received standard flange. I returned the pumps only to get the exact same pumps sent to me again that I had to return. Set me back 2 weeks and still never got the right pumps sent to me. I went elsewhere and got them.
KW
NY
21 days ago
Verified Buyer
Was this review helpful to you?
the rotated flanges helped on this project
I used 2 of these pumps on a Buderus GB142 heat exchanger replacement and manifold rebuild.
The 3 speed option, sure helps too.
hpa
bayville nj
6 months ago
Verified Buyer
Was this review helpful to you?
Decent mid power pump
Could be better. Not near as powerful and heavy duty as the brand I replaced. Taco pump can't handle the heat as well either before it starts to rattle. This pump is probably great for smaller or less load projects other than outdoor wood furnace applications with 100' + of water line to circulate.
TSguy
Arkansas
1 years ago
Verified Buyer
Was this review helpful to you?
Good product and seller
Came on time and worked well as Taco products should
dcm
Ipswick Ma
3 years ago
Verified Buyer
Was this review helpful to you?
Item as described, Arrived quickly
What I needed when I needed it. Will buy again when the time comes. Thanks!!!
Timblin
MN
4 years ago
Verified Buyer
Was this review helpful to you?
Have several on my heating system
Works great . Works good on my garage heat that runs off boiler
Scp
Ma
4 years ago
Verified Buyer
Was this review helpful to you?
Easy install
Pump is quiet.
Ckidd125
New york
4 years ago
Verified Buyer
Was this review helpful to you?
Good product. Fast shipping
Installed easily to replace an existing pump. Seems to run fine.
rick
MA
5 years ago
Verified Buyer
Was this review helpful to you?
Moves water
Using for main circulating pump for a hydronic heat system
Jimbo
D town
7 years ago
Verified Buyer
Was this review helpful to you?
Taco circulator works as advertised
The 3 speed option is great and allows matching system dynamics. IFC check eliminates requirement for zone valve
Nick
PA
9 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Hello Is the impeller plastic,How are the speeds switched?
Asked by W.J. 13 years ago
Add your answer
Verified Reply- PexSupply StaffThis impeller is made out of plastic. Speeds must be switched manually using a knob on the side of the circulator.
