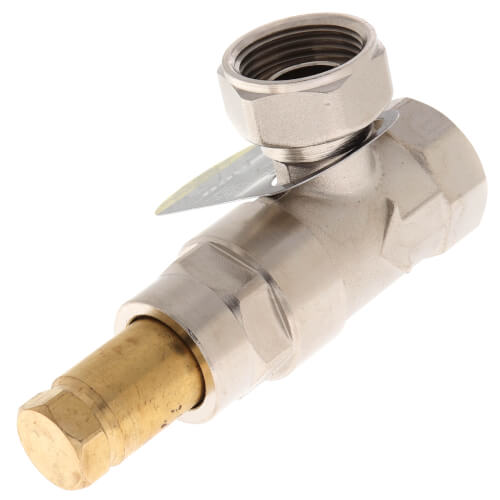

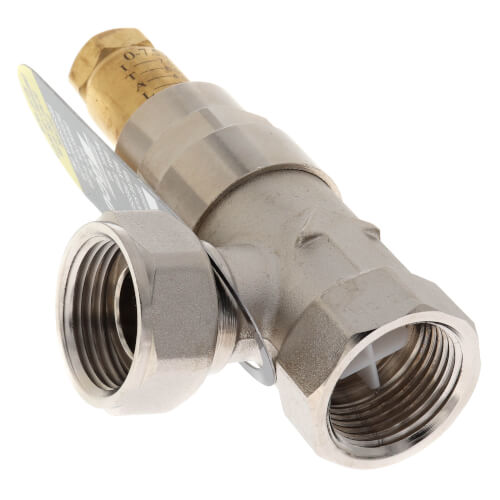

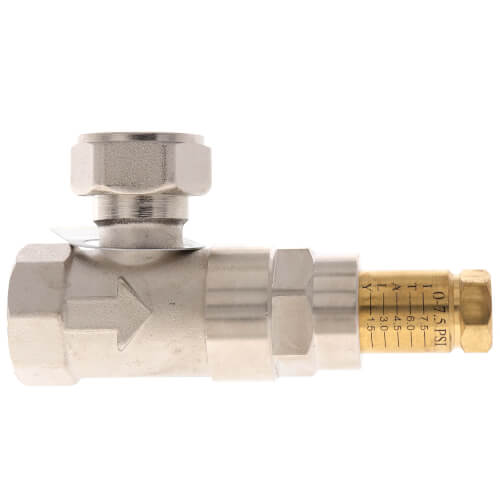

3/4" Bypass Valve Zoom

3/4" Bypass Valve

SKU:3196-1

Brand: Taco

Taco
Qty Price
$55.15
/ each
$320.70 / box (6 units x $53.45)
In Stock! Ships in 24-48 Hours
(38 Available)
4

Specs

Size: 3/4"
Connection Type: Threaded
Pressure Range: 0 to 7.5 psi
Material: Brass
Application: Heating
Max Pressure (PSI): 200 psi
Inlet Type: NPT
Outlet Type: Union NPT
Temperature Range (F): 200°F MAX
Height: 4.29" (Fully Extended)

Description for Taco 3196-1

The Taco Differential Bypass Valve provides an accurate and dependable means to control excess flow in zone valve systems that can be created when there is a reduction in the demand for heat.

This reduced heat demand typically occurs as zone thermostats are satisfied and their corresponding zone valves close, causing the system pump to attempt to force more water through the remaining zones.

By installing a Taco Differential Bypass Valve between the discharge of the system pump and somewhere before the inlet of the pump--usually on the system return--you create an automatically regulated flow path. This regulated flow path prevents unacceptable velocities from being pumped through the zones that remain open during reduced demand periods.

Differential Bypass Valves should also be used to prevent dead heading of the circulator in systems where parallel piped heat emitters are controlled by thermostatic radiator valves.

Features:

  • Prevents Velocity Noise While Maintaining Desgined Heat Transfer of Each Zone
  • Enhances Overall System Perofmrance
  • Brass Body, Indicator and Union Nut
  • Stainless Steel and Engineered Plastic Internals
  • Maximum Pressure: 200 PSI
  • Maximum Temperature: 200 F
  • Adjustment Range: 0 to 7.5 PSI

3/4" Bypass Valve

REVIEW SNAPSHOT®

by PowerReviews
Taco3/4" Bypass Valve

4.0

(based on 1 review)

Ratings Distribution

  • 5 Stars



    (0)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 1 customer

Displaying review 1

Back to top

(0 of 1 customers found this review helpful)


4.0

It works

By walker

from NJ

Verified Buyer

Comments about 3/4" Bypass Valve:

Need parts for gas boiler. It fit well

Displaying review 1

Back to top

Q&A: Ask the Questions, share answers

Do you have questions about this product?

get answers from real customers and in-house experts with AnswerBox.

4 Questions | 9 Answers
Displaying questions 1-4
  • 3/4" Bypass Valve

    Q:

    Can this product be installed horizontally? I.e. with the adjustment knob parallel to ground?
    Asked on 11/13/2012 by DCDIYER from DC

    6 answers

    • VERIFIED BUYER

      A:

      Yes you can. This is how I installed mine, and it works great.

      Answered on 11/13/2012 by Anonymous
    • VERIFIED BUYER

      A:

      Mine is. It's a spring-loaded pressure sensing valve, so the only difference
      it makes it the effect of gravity on the spring. Negligible, at best.

      Answered on 11/13/2012 by Anonymous
    • VERIFIED BUYER

      A:

      Yes, the bypass valve can be installed horizontally. The valve body is pressure-actuated, so orientation does not matter.

      Answered on 11/13/2012 by Anonymous
    • VERIFIED BUYER

      A:

      Yes. Mount it in any position you want. It is spring loaded.

      Answered on 11/13/2012 by Anonymous
    • VERIFIED BUYER

      A:

      Yes

      Answered on 11/13/2012 by Anonymous
    • VERIFIED BUYER

      A:

      I'm sure it can be installed in any position. All that's in there is a spring valve. I know that because I burned one out sweating the joint and had to take it apart. ****@***.***

      Answered on 11/28/2012 by Anonymous
  • 3/4" Bypass Valve

    Q:

    Just wondering if you carry a 1" version, and if this can only be attached by threaded means, or can it be attached with "sweat"?
    Asked on 1/15/2011 by Anonymous

    1 answer

    • CUSTOMER CARE

      A:

      Taco does not offer a 1" unit. This is a threaded unit; it must be attached as such.

      Answered on 2/1/2011 by PexSupply Staff from NY
  • 3/4" Bypass Valve

    Q:

    Which copper pipe fitting is recommended to mate with the 3/4" NPT union on the Taco 3196 bypass valve?
    Asked on 1/5/2011 by Anonymous

    1 answer

    • CUSTOMER CARE

      A:

      You should use a fitting that has a 3/4" male thread.

      Answered on 1/28/2011 by PexSupply Staff from NY
  • 3/4" Bypass Valve

    Q:

    If I'm using this bypass valve in conjunction with a Taco 00R-MSF1-IFC circulator in a system with 7.5 GPM flow at 7.8 ft. of head when all zone valves are open, what would be the optimal PSI setting for the 3196 bypass valve in order to manitain proper flow and prevent pump dead-heading when the zone valves are progressively beginning to close down?
    Asked on 1/4/2011 by Anonymous

    1 answer

    • CUSTOMER CARE

      A:

      Your system pressure should be around 12-15 PSI. The valve comes with a manual on how to set it.

      Answered on 1/5/2011 by PexSupply Staff from NY
Displaying questions 1-4
