Product Highlights
Description
Specs
| Application: | Heating |
|---|---|
| Material: | Aluminum Tubing |
| Length (Inches): | 20" |
| Size: | 1/8" |
Questions?
You May Also Need
Product Reviews
Most Liked Positive Review
Just what I needed
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
No I would not order again
Making Connections
worked.
I would buy this product again
Easy to cut and fit
Great Company
You had the part in stock
No I would not order again
I would buy this product again
Product is good
" I would by this product again".
Product Q&A

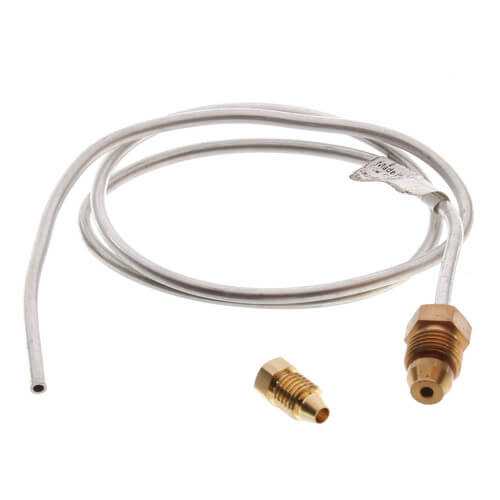

4 QuestionsQ: Got my pilot tube kit. One of the fittings is good (the end that screws into the thermostat), but the end that attaches to the actual pilot flame is not complete and loose on the pipe. How do I attach that fitting to that end?
Asked by ckinsey 14 years ago
Add your answer
You should be able to reuse that fitting from your old pilot tube.
Does your oilot tube look like the one shown on thPex web page...... if not its not a complete assembly. Mine screwed into th burner assembly DLT
You need to buy part number # 560-742-860 to make it work. Zoom Pilot Tubing w/ Compression Fittings, 22-3/4" Long SKU:560-742-860 Brand: Weil Mclain 0.0 (No reviews) Be the first toWrite a Review Pilot Tubing w/ Compression Fittings, 22-3/4" Long Qty Price $3.79 / each In Stock!Ships in 24-48 Hours Order Today, Receive Thu. Jun 07
Q: Hos do you get this through the rubber seal?
Asked by ryan 14 years ago
Add your answer
Im not sure what you're referring to, but I presume you're talking about the seal between the inside of the tank where the burner is and outside of the tank where the gas valve is. My chief engineer installed the piece, so I'm not exactly sure, but I was under the impression that the ferrings at the ends come off, so you can insert the copper tubing through the hole in the rubber seal, and then reinsert the connectors at the ends. The compression ferruli nut should take care of securing them to the copper tubing.
Q: IS THIS THE LINE THAT WOULD FEED THE BURNER
Asked by LUKE 14 years ago
Add your answer
No, this is the tube for the pilot light.
This is the line that feeds the pilot (or igniter) on my gas log fireplace. Hope this helps you. Brian
No, this is a very narrow tube that just feeds the pilot light.
It would only IGNITE the main burner, just like on a water heater or furnace, the difference is only in the diameter of the tube, 1/8", VERY hard to find, PexSupply solved the problem.
This tube feeds the pilot. 1/8" flare by 1/4" flare connections, common to water heaters made by AO smith and also State. Found also to fit some Burnham boilers from our experience. Thanks, Scott Olson Geiser-Berner Plumbing, Heating and Air Conditioning ***.****
It feeds the gas to the pilot light only.
It feeds the pilot burner if that is what you are asking.
Q: I noticed that one of the fittings on the gas line is pointy and one round, is one specifically for the gas valve ad one for the pilot?
Asked by George 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe round part is for the gas valve side.
Yes each of the fittings on the Pilot Tube Kit is specific to the fitting it connects to.
