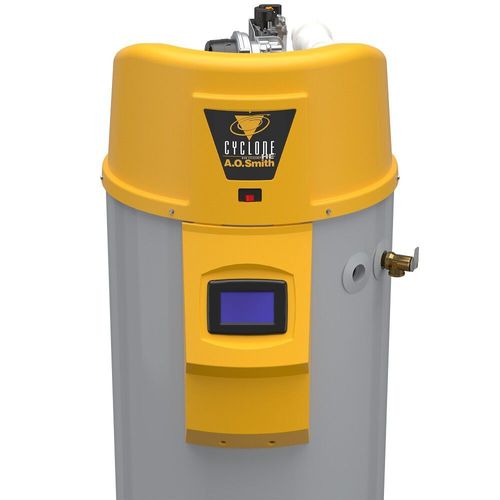

50 Gallon BTX-100 100,000 BTU Cyclone Xi Power Direct Vent Condensing Commercial Gas Water Heater w/ Modulating Burner (NG/LP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Lift Gate
Product Highlights
Description
The Cyclone Xi Versatile Power Direct Vent gas water heater is a cutting-edge solution designed to deliver exceptional performance and efficiency for commercial applications. With an impressive 96% thermal efficiency, this fully condensing water heater ensures maximum energy savings while providing outstanding hot water output. Its innovative helical heat exchanger keeps hot combustion gases in the tank longer, optimizing the heat transfer cycle for superior results. The Cyclone Xi is equipped with advanced features like the AiQ Adaptive Gas Control system, which adjusts to varying fuel qualities and ensures reliable combustion. Power by natural gas or liquid propane with its touch-screen gas type selection.
The Cyclone Xi boasts a Blue Diamond glass coating for superior corrosion resistance and a powered anode for extended tank life. Its ultra-low NOx gas burner meets stringent air quality standards, making it an environmentally friendly choice. The power direct vent design allows for versatile installation with vertical and horizontal venting options using PVC, CPVC, or polypropylene pipes. Certified by CSA and ASME, this water heater meets national codes and efficiency requirements, ensuring reliability and peace of mind. With a sleek design, advanced electronic controls, and a 3-year limited tank warranty, the Cyclone Xi is the ideal choice for commercial applications seeking high performance and long-term value.
Product Specifications:
- 3-Year Warranty
- 96% Thermal Efficiency-Maximizes energy savings and reduces operating costs
- Condensing Design-High-efficiency operation with a built-in condensate drain tee for easy maintenance
- AiQ Adaptive Gas Control System-Ensures reliable combustion and adjusts to varying fuel qualities for optimal performance
- Helical Internal Heat Exchanger-Extends the heat transfer cycle for superior hot water output
- Top-fired Ultra Low NOx gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
- Blue Diamond glass-lining and CoreGard powered anode rod provide superior corrosion resistance
- Power Direct Vent Design-Allows flexible installation with vertical and horizontal venting options using PVC, CPVC, or polypropylene pipes
- Features Blue Diamond glass coating for superior corrosion resistance and a powered anode for extended tank life
- Includes a 3-year limited tank warranty and 1-year limited parts warranty for peace of mind
Specs
| Height (Inches): | 66-3/4" |
|---|---|
| BTU (Min): | 99900 |
| BTU Input: | 99900 |
| Fuel Type: | Propane Natural Gas |
| Energy Star Rated: | Yes |
| Application: | Plumbing |
| Capacity (Gallons): | 49.8 |
| Efficiency: | 96% |
| Max Pressure (PSI): | 150 |
| Max Temp (F): | 180°F |
| Vent Size: | 2" |
| Vent Type: | PVC CPVC ABS |
| Diameter (Inches): | 22" |
| Weight (lbs): | 255 lbs |
| Max Pressure: | 14" W.C. |
| ASME: | No |
| Gas Connection: | 1/2" |
| Water Connection: | 3/4" |
| Voltage: | 120v |
| Hertz: | 60 |
| Warranty: | 3 Year Limited Tank |
Questions?
Product Reviews
AO SMITCH WATER HEATER - works excellent
Condensate around base
Product Q&A
3 QuestionsQ: Does this water heater use anode rods inside the tank?
Asked by Jerry 8 years ago
Add your answer
Verified Reply- Jerry, If you take a look at the Replacement Parts List: https://s3.amazonaws.com/s3.supplyhouse.com/product_files/AO%20Smith-BTX-100-Replacement-Part-List.pdf , you will see on Page 2, that there is an Anode Rod inside the unit.
Q: What size is the t and p relief valve on this model
Asked by Christopher 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffIts a 3/4 NPT connection.
Q: what are the key differences between this unit and the similar GDHE-50?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe Cyclone is designed for commercial applications, whereas the Vertex is a residential model.
