Product Highlights
–
6" x 6"
Galvanized Steel
Door panel filled with 2" fiberglass insulation (7.7 R factor) compressed into 1"
Description
–

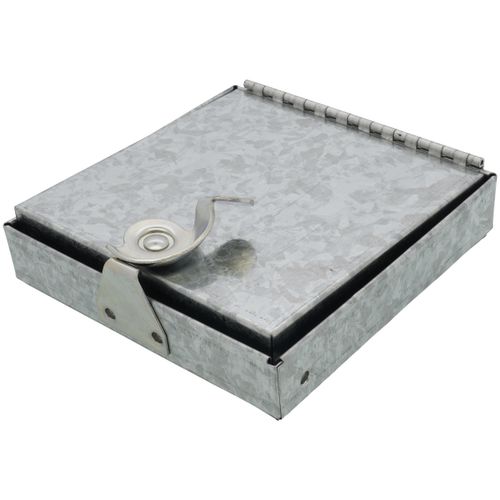

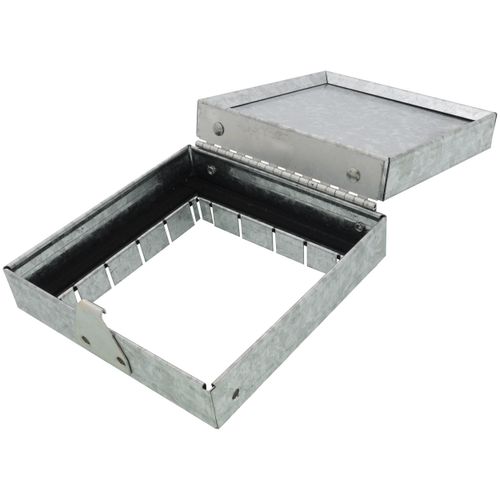

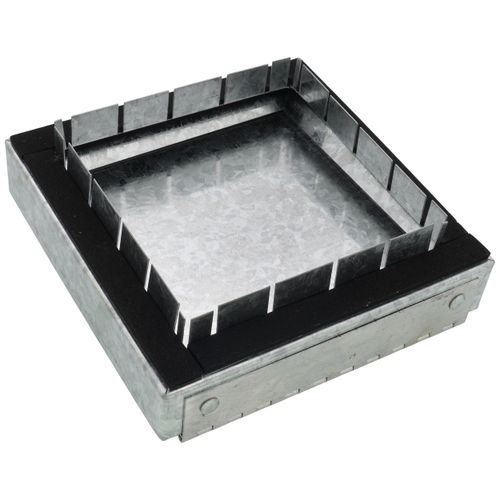

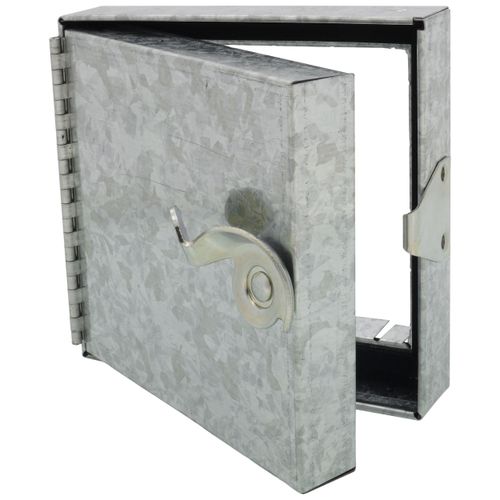

The Acudor HD-5070 is a hinged duct door for sheet metal ducts. The HD-5070 assures a tight seal without obstruction in the air system.
Features:
- Insulated door panel, along with the gasketing between the door and frame
- 5/8" notched knock over tabs on the inside of the frame provide for easy installation
- Designed for use in LOW to medium pressure up to 3" static W.G.
- Continuous aluminum piano hinge
Specs
–
| Size: | 6" x 6" |
|---|---|
| Material: | Galvanized Steel |
| Wall Opening (Inches): | 4-3/4" 4-3/4" x 4-3/4" |
| Type: | Hinged |
| Door: | 24 gauge galvanized steel, Double panel |
| Number of Latches: | 1 |
| Frame: | 24 gauge galvanized steel w/ 5/8" notched knock over tabs |
| Latch: | Self tightening hand operated cam latch |
| Hinge: | Continuous aluminum piano hinge |
| Gasketing: | 1/8" thick x 1/2" wide closed cell neoprene gasketing b/t door & frame & also b/t frame & duct |
| Insulation: | Door panel filled with 2" fiberglass insulation (7.7 R factor) compressed into 1" |
