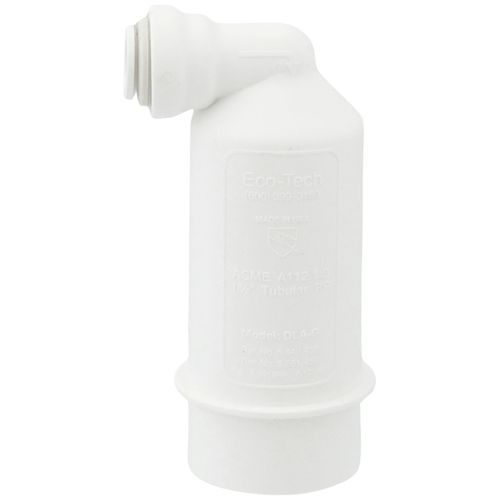

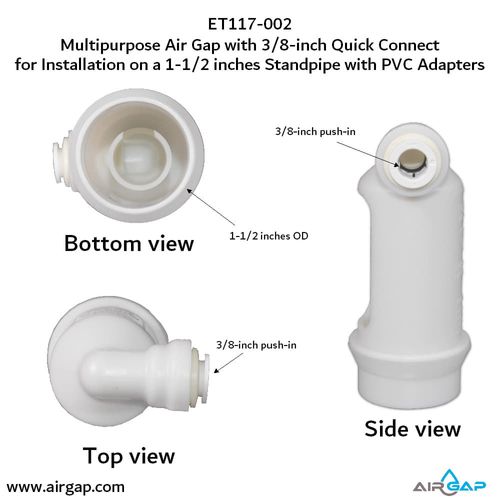

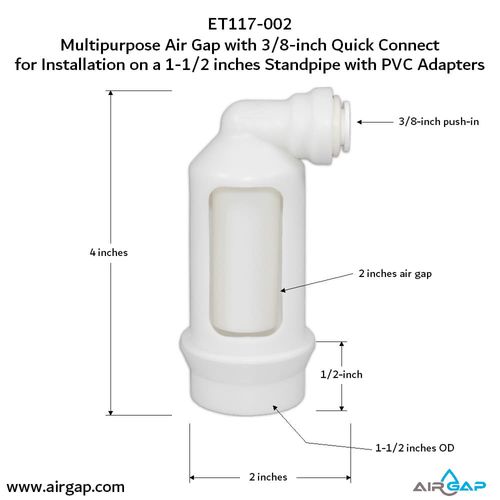

Air Gap For Water Softener and Water Filter w/ PVC Trap Adapter, 3/8" Push-In Inlet

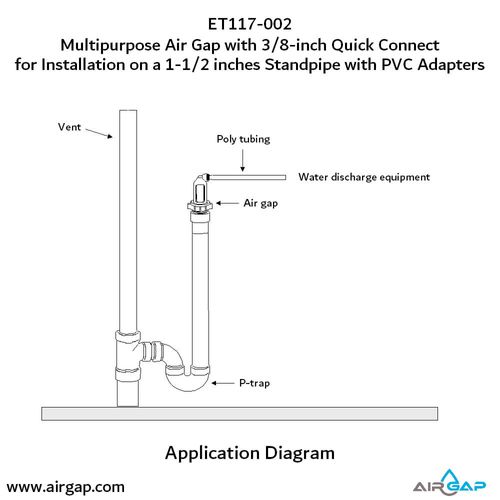

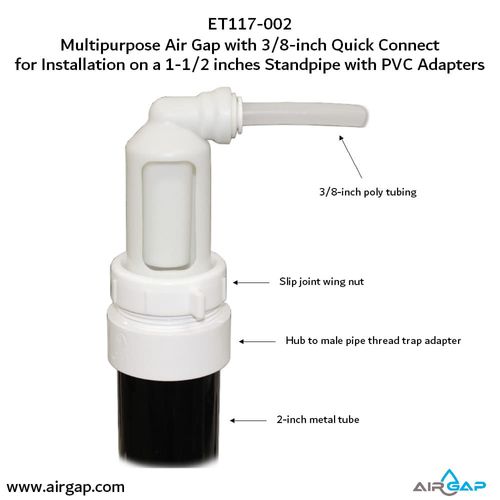

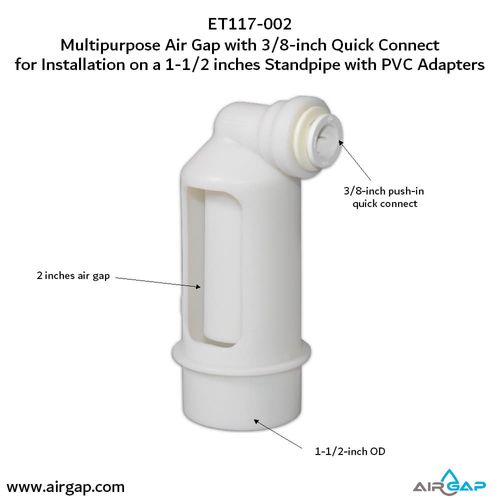

The ET117-002 universal water softener or water filter air gap is designed to provide a convenient way to install an air gap into 1-1/2" standpipe drain. This air gap can be connected to a water filtration system using flex tubing. The unique design provides a completely protected air gap without any possibility of water splashing out. The inlet accommodates flex tubing for a leak-proof installation in tight spaces. The right-angle inlet provides a convenient way of connecting discharge water tubing to a drain line through air gap.

The ET117-002 air gap is easy to use and legal to install in any state. The ET117-002 air gap is listed by UPC (Uniform Plumbing code) and tested for compliance with IPC (International Plumbing Code) and NSF standards.

Features

• Provides easy connection to 1-1/2" standpipe drain
• Splash guard assures completely dry operation
• Quick connect push-in inlet connector
• Recommended usage up to 15 gallons/minute flow rate
• Legal to install in any state, UPC Listed, IPC and NSF tested

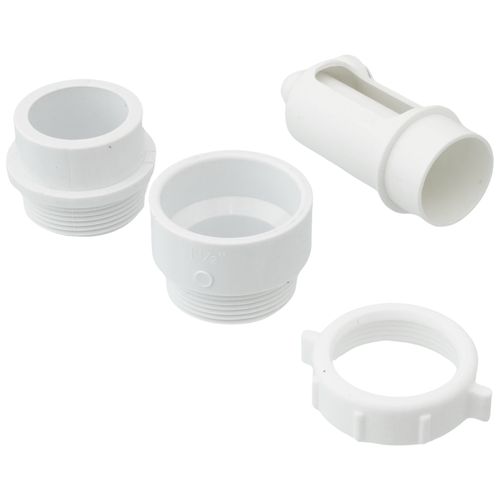

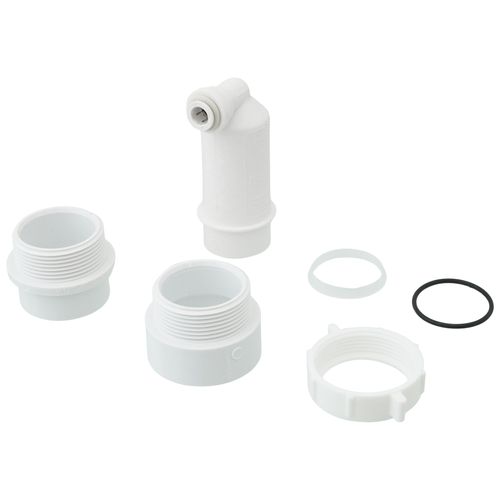

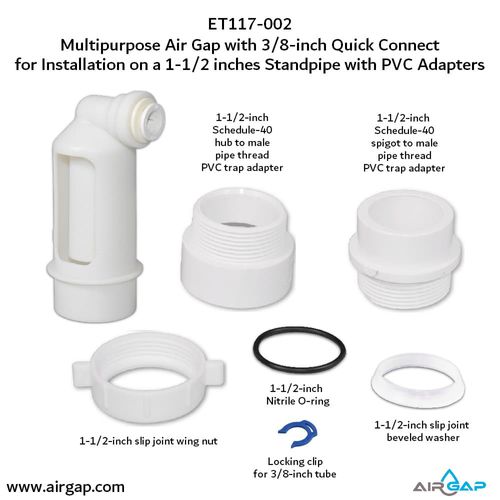

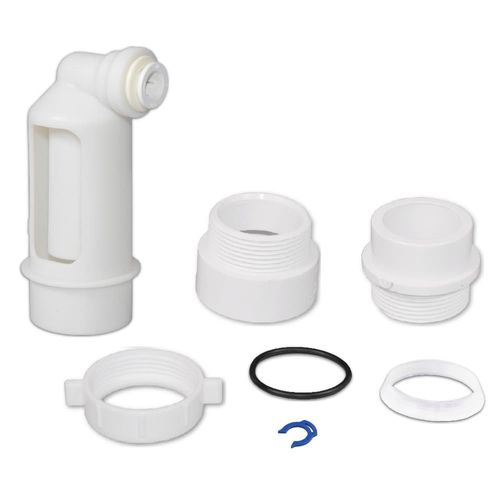

Includes

• 1-1/2" Schedule-40 PVC hub to male pipe thread trap adapter
• 1-1/2" Schedule-40 PVC spigot to male pipe thread trap adapter
• 1-1/2" slip joint wing nut
• 1-1/2" O-ring
• 1-1/2" PVC slip joint beveled washer
