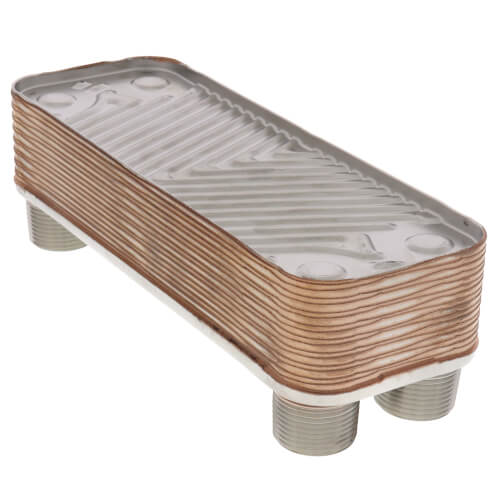

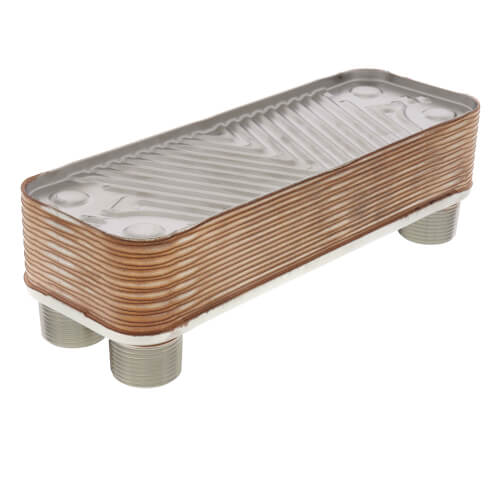

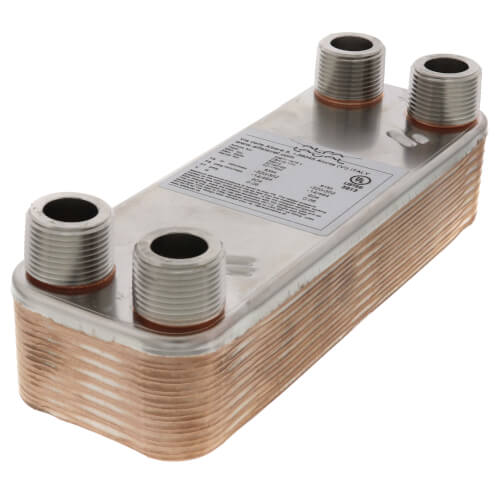

200,000 BTU/Hr (Domestic Water) CB16 Brazed Plate Heat Exchanger (17 Plates)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$481.37 each
In Stock
Get 2 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: CB16-17H, CB16AQ-17H, CBH16AQ-17H
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
200000 Max BTUs
Male Thread Type
Description
–
Alfa Laval CB brazed plate heat exchangers provide efficient
heat transfer with a small footprint.
Applications
The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life
Different pressure ratings are available for different needs.
Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
Applications
- HVAC heating and cooling
- Oil cooling
- Industrial heating and cooling
- Compact
- Easy to install
- Self-cleaning
- Low level of service and maintenance is required
- All units are pressure and leak tested
- Gasket free
The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life
Different pressure ratings are available for different needs.
Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
Specs
–
| Type: | Snow Melt DHW Radiant Heat |
|---|---|
| Number of Plates: | 17 |
| Application: | Heating |
| Features: | AHRI Certified |
| BTU Output: | 200000 |
| Brazing Material: | Copper |
| Cover Plate Material: | Stainless Steel |
| Thread Size: | 3/4" |
| Thread Type: | Male |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Type
Number of Plates
Application
BTU Output
Brazing Material
CURRENT ITEM
Snow Melt
DHW
Radiant Heat
DHW
Radiant Heat
17
Heating
200000
Copper
Product Reviews
4.33 out of 3 reviews
67% would recommend this product
5 star
67%
4 star
0%
3 star
33%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Three years in and zero problems
I installed this to change my existing hydronic heat system from open loop to closed and installed it three years ago. It does a good job as a heat exchanger and has caused me zero issue. I give it a cleaning each time I clean my tankless heater and am happy with this unit.
TomS
Eagle River, WI
1 years ago
Was this review helpful to you?
Easy to set up and use for hydronic heat
This unit was overkill for my needs but the price, layout, etc were all right so I got it. I had an open loop system home built hydronic heating setup that I put together a decade ago that has since been expanded significantly when we added a full basement to our home and I wanted to get the extra load of pumping through my tankless water heater off my main circulation pump. Adding a heat exchanger was the necessary step. Adding THIS heat exchanger was the right step. Easy to connect and use, does an excellent job of transferring heat across the plates to my hydronic loop.
TomSWI
Northern WI
4 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Excellent delivery when it's not clogged.
If you install one of these heat exchangers, make sure to pipe a drain upstream on the domestic inlet side so you can blow back to flush all the debris that gets stuck inside the fine channels which leads to reduced/restricted/stopped flow before it gets baked in place by your boiler water.
B&B Backflow
NEPA
4 years ago
Was this review helpful to you?
