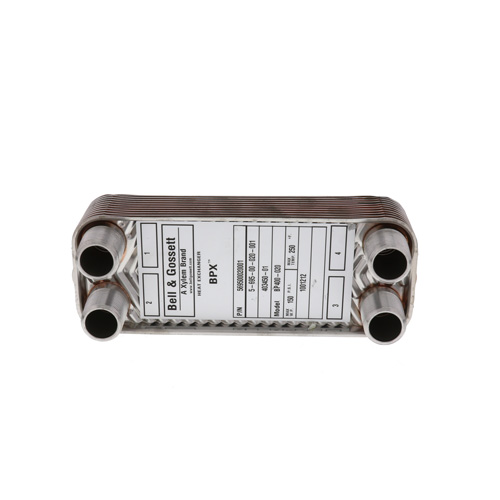

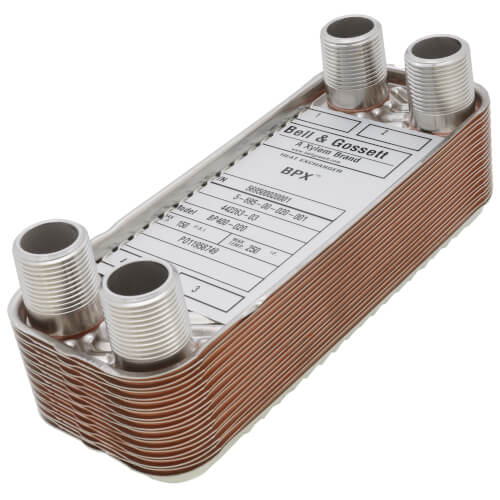

125,000 BTU/Hr Low Pressure BPX Brazed Plate Heat Exchanger
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$327.04 each
In Stock
Get 24 Mon, Jun 8
Order by 6PM, receive Monday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
8-1/5"
435 MAX PSI
2-9/10" Depth
Male Thread Type
125000 Max BTUs
-310°F - 450°F
Description
–
B & G type Low Pressure BPX brazed plate heat exchangers offer the highest level of thermal efficiency and durability in a compact, low cost unit. These are ideal for applications that require 150 PSIG or less. The corrugated plate design provides very high heat transfer coefficients, resulting in a more compact design. The unit's stainless steel plates are vacuum brazed together to form a durable, integral piece.
Technical Specifications:
Applications:
Radiant Floor Heating:
Snow Melt Application:
Domestic Water Heating:
Technical Specifications:
- BTU/Hr: 125,000
- Design Pressure: 435 PSI
- Design Temperature: -310°F min, 450°F max
- Number of Plates: 20
- Channel Plates: Stainless Steel ASTM 316L
- Brazing Material: Copper
- Weight (lbs): 2
Applications:
Radiant Floor Heating:
- Boiler Side: Water 180 Degree F Supply, 160 Degree F Return, Flow: 12.9 GPM, Pressure Drop: 7.9 PSI
- Radiant Floor Side: Water 120 Degree F Supply, 100 Degree F Return, Flow: 12.6 GPM, Pressure Drop: 6.8 PSI
Snow Melt Application:
- Boiler Side: Water 180 Degree F Supply, 160 Degree F Return, Flow: 12.9 GPM, Pressure Drop: 8.2 PSI
- Snow Melt Side: 40% P.G. 130 Degree F Supply, 100 Degree F Return, Flow: 8.9 GPM, Pressure Drop: 4.2 PSI
Domestic Water Heating:
- Boiler Side: Water 180 Degree F Supply, 130 Degree F Return, Flow: 5.2 GPM, Pressure Drop: 1.5 PSI
- Domestic Water Side: Water 50 Degree F Supply, 140 Degree F Return, Flow: 2.8 GPM, Pressure Drop: 0.4 PSI
Specs
–
| Number of Plates: | 20 |
|---|---|
| Width: | 3-1/10" |
| Height: | 8-1/5" |
| Max Pressure (PSI): | 435 |
| Application: | Heating |
| Depth (Inches): | 2-9/10" |
| Type: | Radiant Heat Snow Melt DHW |
| Thread Type: | Male |
| Brazing Material: | Copper |
| BTU Output: | 125000 |
| Cover Plate Material: | Stainless Steel |
| Temperature Range (F): | -310°F - 450°F |
| Min Temp (F): | -310°F |
| Thread Size: | 3/4" |
