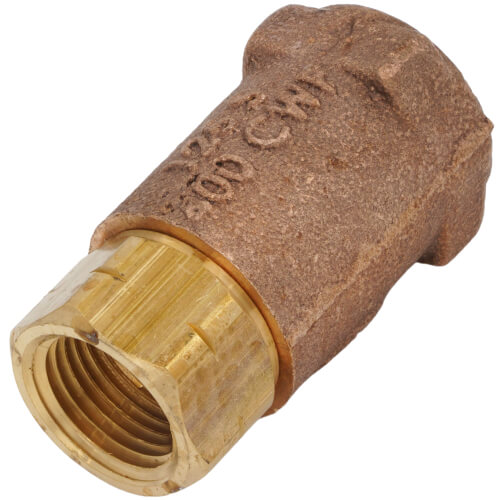

1/2" Threaded Bronze In-line Spring Check Valve (61LF Series)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2"
FNPT x FNPT Connection
350°F Max Temp
Bronze
Description
–
The Apollo® CVB-LF (61LF Series) Ball Cone® check valves offer reliable protection against reverse flow
and exceptional resistance to chemicals and corrosion using proven ASTM grade Lead Free* materials.
Features:
Applications:
Well-suited for a broad range of applications, including potable water, saturated steam and chemical service. May be installed in both horizontal and vertical orientation with upward flow. Do not use for reciprocating air compressor service.
* LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with CA AB1953, VT Act 193, MD HB372, LA HB471 and Federal Public Law 111-380.
Features:
- FNPT Threaded Connections
- 1/2 psi spring cracking pressure
- Cast Bronze Body, Sizes 1/4" to 3"
- Tight Shut-off With Liquid Media
- Straight-through Flow Design Efficiency
- RPTFE Ball Cone® for Chemical Resistance
- NSF/ANSI 61-8, Annex G
- NSF 372 Lead Free*
- Made in the USA
Applications:
Well-suited for a broad range of applications, including potable water, saturated steam and chemical service. May be installed in both horizontal and vertical orientation with upward flow. Do not use for reciprocating air compressor service.
* LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with CA AB1953, VT Act 193, MD HB372, LA HB471 and Federal Public Law 111-380.
Specs
–
| Country of Origin: | USA |
|---|---|
| Product Type: | Check Valve |
| Size: | 1/2" |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Max Temp (F): | 350°F |
| Max. Working Pressure: | 400 PSI |
| Material: | Bronze |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
Showing 1-1 of 1 reviews
Very Noisy
These Ball Cone Check Valves Are Extremely Noisy. I Will Be Replacing Them With The Soft Seat Check Valves.
Pete
Missouri
7 months ago
