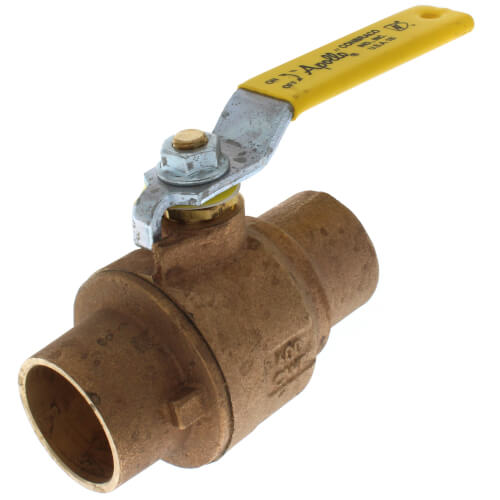

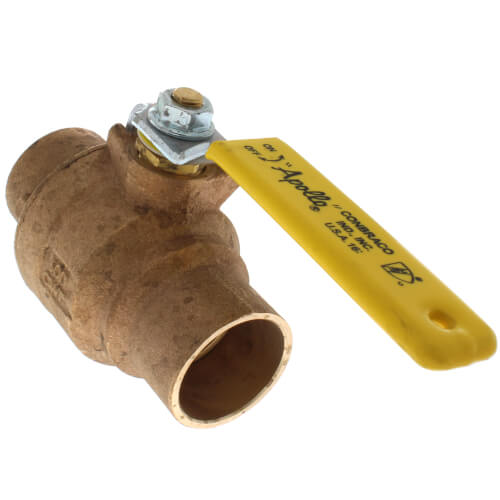

1-1/2" Full Port Contractor Series Sweat Ball Valve (177 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
77C20701 has been discontinued
Discontinued May 27, 2026
This product was discontinued by the manufacturer.
MANUALS (4)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Product Highlights
–
1-1/2"
C x C Connection
Bronze
Lever
No
Full Port
Description
–
The Apollo 77C "Contractor Series" ball valve features a
dezincification resistant bronze body, premium "multi-fill"
MPTFE seats and stem packing, and a "Solid Ball" design that
delivers true full-port flow performance. Cast and machined in Apollo's South Carolina
manufacturing plants utilizing proven ASTM materials.
Features:
Performance Rating:
Approvals:
Features:
- Multi-Fill PTFE Seats & Seals
- Blow-out Proof Stem Design
- Adjustable Stem Packing
- Full-Port "Solid Ball" Design
- 100% Factory Tested
- Made in USA
Performance Rating:
- Maximum Pressure: 600 psi CWP, 150 psi SWP
- Maximum Temperature: 500°F
- Vacuum service to 29 in. Hg
Approvals:
- MSS SP-110 Compliant
- CRN: OC10908.5C
Specs
–
| Size: | 1-1/2" |
|---|---|
| Max Pressure (PSI): | 600 |
| Material: | Bronze |
| Connection Method: | Sweat |
| Connection Type: | C x C |
| Handle Style: | Lever |
| Application: | Plumbing |
| Features: | Standard |
| Valve Construction: | 2 piece |
| Lead Free: | No |
| Port Type: | Full Port |
