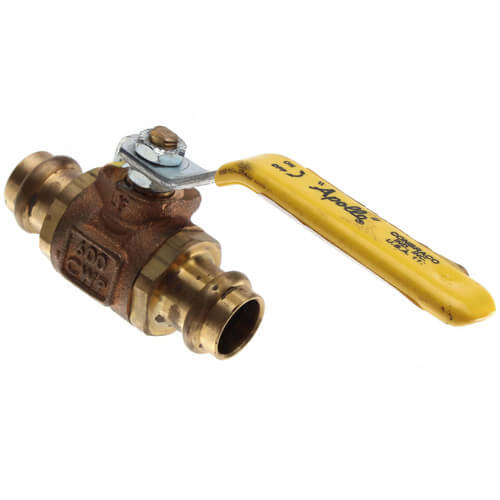

2" APOLLOXPRESS Full Port Press Ball Valve (389 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
77W10801 has been discontinued
Discontinued November 11, 2019
This product was discontinued by the manufacturer.
MANUALS (4)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Direct Replacement:
Product Highlights
–
2"
Press x Press Connection
Bronze
Lever
No
Full Port
Description
–
The APOLLOXPRESS® 77W Series Ball valve is ideal for installation in heating, cooling and nonpotable
plumbing. Now with Leak Before Press® feature and 250 psig maximum working pressure.
Features:
Performance Rating:
Approvals:
Approved Applications:
Features:
- Heavy pattern cast bronze body
- Full-Port Flow
- Adjustable Stem Packing
- Fast, Reliable, Economical Press Installation
- Ridgid® XL Press Tool Compatible
- Leak Before Press® Technology
- Blw-Out Proof Stem
- Corrosion Resistant Materials
- 100% Factory Tested
- Silicone Free
- Made in USA, ARRA Compliant
Performance Rating:
- Maximum Operating Pressure 250 psi
- Temperature Range: 0°F - 250°F
Approvals:
- MSS SP-110 Ball Valves
- Directive 2011/65/CE (RoHS)
Approved Applications:
- Water, chilled and hot: 33°F - 250°F
- Hydronic Heating (50% glycol max)
- Low Pressure Steam, 15 psi max
- Not suitable for flammable gas service
- Not compatible with soft annealed copper tubing
Specs
–
| Size: | 2" |
|---|---|
| Max Pressure (PSI): | 250 |
| Material: | Bronze |
| Connection Type: | Press x Press |
| Connection Method: | Press |
| Handle Style: | Lever |
| Application: | Plumbing |
| Features: | Standard |
| Valve Construction: | 2 piece |
| Lead Free: | No |
| Port Type: | Full Port |
