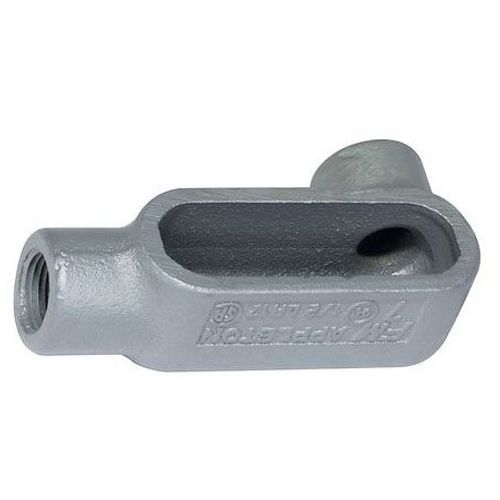

Form 7, 1-1/2" Threaded LR Type Rigid Conduit Body - Graylon Iron
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$42.82 each
In Stock
Get 3 Fri, Jul 10 - Mon, Jul 13
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1-1/2"
Threaded Connection
Description
–
This item is a Form 7, 1-1/2" Threaded LR Type Rigid Conduit Body - Graylon Iron manufactured by Appleton.
Features:
Features:
- Conduit outlet body
- access opening right side
- configuration lr
- cover type zinc electroplated/chromate/epoxy powder coated gray iron
- hub location 90 degree
- number of hubs 2
- hub size 1-1/2 inch
- size 7.13 inch l x 3.5 inch w
- installation threaded
- material zinc electroplated/chromate/epoxy powder coated gray iron (body), neoprene (gasket), stainless steel cover (screw)
- form type form 7
- approval ul 514a/514b, csa c22.2
- used on rigid/imc conduit
- applicable standard nema fb-1
- capacity 28 cu inchServe as Pulling Fitting
- Make Bends in Conduit System
- Provide Openings for Splicing
- Connect and Change Direction of Conduit Runs
- Allow Connections for Branch Runs
- Permit Access to Conductors for Maintenance
- Smooth, Rounded Integral Bushings in Hubs Protect Conductor Insulation
- Accurately Tapped, Tapered Threads for Tight, Rigid Joints and Excellent Ground Continuity
- Wedge-Lock Form-in-Place Covers with Integral Gasket are Approved for Use in Wet Locations
- Grayloy-Iron Bodies with Cast Covers and Gasket are Approved for Use in Wet Locations
- Unique Wedge-Lock Clip Cover Design Allows Easy Removal at any Later Time, without Damaging the Conduit Body
- The Cover is Secured with Clips, not Screws
- Completely Interchangeable with Competitors form 7 Bodies, Gaskets and Covers
- Equivalent FM7 and Form 7 Units have Identical Applications and Installation Dimensions
- Flat Back Design Provides Greater Cubic Content for Easier Wire Pulling, and More Room for Splicing
- Fits Flush and Snug Against Flat Surfaces for More Stable Installation
- Smooth Hub Bushings and Cover Openings Protect Conductor Insulation
- Smooth Hub Openings Allow Easy Conduit Joining
- Pan-Head Cover Screws Secure Cover Clips and Provide Superior Screwdriver Seating and Torque
- Cover Screws and Clips are Captive to Prevent Loss
Specs
–
| Size: | 1-1/2" |
|---|---|
| Product Type: | Conduit Body |
| Connection Type: | Threaded |
