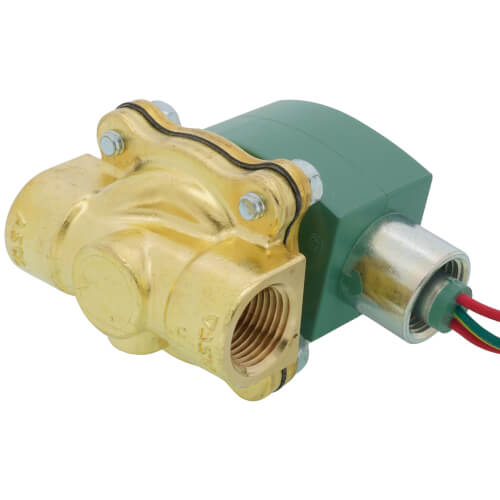

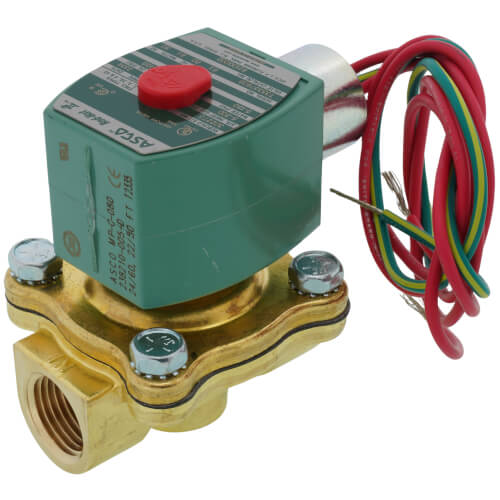

1/2" Normally Closed Solenoid Valve, 4 CV (24v)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$193.82 each
In Stock
Get 19 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: 8210G2-24V
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
24V
1/2"
2-Way
Threaded Connection
4 Cv
Description
–
Features
- Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
- High Flow Valves for liquid, corrosive, and air/inert gas service
- Industrial applications include: Car wash, Laundry equipment, Air compressors, Industrial water control, Pumps
Solenoid Enclosures
- Standard: RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type I.
- Optional: RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9; Red-Hat - Explosionproof and Watertight, Types 3, 4, 4X, 7, and 9. (To order, add prefix "EF" to catalog number, except Catalog Numbers 8210B057, 8210B058, and 8210B059, which are not available with Explosionproof enclosures.) See Optional Features Section for other available options.
Specs
–
| Connection Type: | Threaded |
|---|---|
| Size: | 1/2" |
| Flow Capacity (Cv): | 4 |
| Voltage: | 24V |
| Body Pattern: | 2-Way |
| Wattage: | 6.1 |
| Fluid Temperature Range: | 180 F Max |
| Features: | NEMA 4X NEMA 4 |
| Position: | Normally Closed |
| Flow type: | High Flow |
| Max AC Air: | 200 |
| Max AC Water: | 150 |
| MAX AC LT. OIL: | 135 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.25 out of 4 reviews
75% would recommend this product
5 star
75%
4 star
0%
3 star
0%
2 star
25%
1 star
0%
Showing 1-4 of 4 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy if the description was accurate, listed as DC bu
Product was listed as a DC current when arrived was actually an AC current solenoid. Being that it would not work for the application, we purchased it for. Too bad my guys had already installed it before the control technician realized it was incorrect, so means I can't return it.
Johnny Unhappy
Albuquerque
3 months ago
Verified Buyer
Was this review helpful to you?
Asco Solenoid
Quality solenoid at a fair price.
Great shipping.
Raymond2660
Clinton , MD
2 years ago
Verified Buyer
Was this review helpful to you?
yes, i will buy this product again.
YOU GUYS HAVE THE BEST DEAL ON THIS VALVE, AND I WILL ALWAYS BUY IT FROM YOU. SAVED ME A BUNCH!!
HOMER
SUMMERVILLE, SC
8 years ago
Verified Buyer
Was this review helpful to you?
i will buy this product again. for sure
very good price and quick service. thanks
Homer
summerville,sc
9 years ago
Verified Buyer
Was this review helpful to you?
