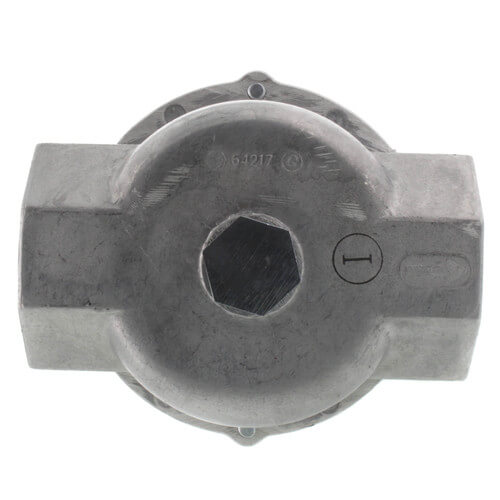

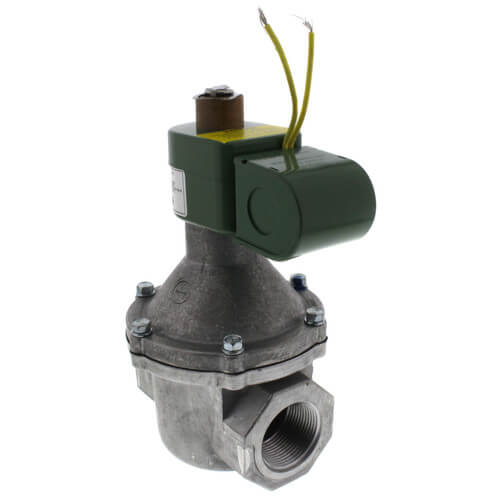

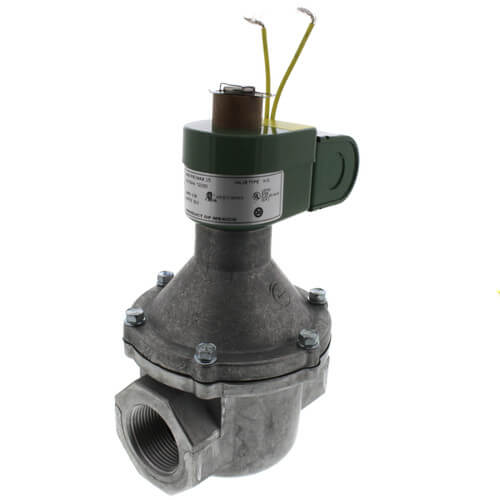

1-1/4" NPT 2-Way Normally Open Gas Vent Valve (1,710,000 BTU)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
S262SG02N3GJ7 has been discontinued
Discontinued February 24, 2020
This product was discontinued by the manufacturer.
MANUALS (1)
Direct Replacement:
1-1/4" NPT 2-Way Normally Open Gas Vent Valve (1,710,000 BTU)
Product Highlights
–
Normally Open
120v
1-1/4"
2-Way
Threaded Connection
34 Cv
Description
–
S262 Series: Used in double block and vent systems and mounted in the vent piping between the shutoff valves. Provides on-off control of fuel gas in vent line. Must be vented to the outside atmosphere. Aluminum body. 3/8" thru 3" pipe size.
Features:
2-way normally open operation
Die-cast aluminum bodies
Zero differential piloted diaphragm
Valves provided with pipe tap(s) with plug for
routine testing
Suitable for ambient temperatures up to 175°F
Construction:
Features:
Construction:
- Body: Aluminum
- Seals and Disc: NBR
- Washer: 302 Stainless Steel
- Core Tube: 305 Stainless Steel
- Core and Plugnut: 430F Stainless Steel
- Core Guide: CA
- Springs: 302F Stainless Steel
- Shading Coil: Copper
- Body Gasket: Cork
- Sleeve and Pin: 416 Stainless Steel
- Pipe Plug: Zinc-Plated Steel
Specs
–
| Size: | 1-1/4" |
|---|---|
| Connection Type: | Threaded |
| Position: | Normally Open |
| Body Pattern: | 2-Way |
| Material: | Aluminum |
| Voltage: | 120v |
| Hertz: | 60 |
| Flow Capacity (Cv): | 34 |
| Wattage: | 20 |
| Capacity: | 1710000 BTU |
| Max Pressure (PSI): | 25 |
