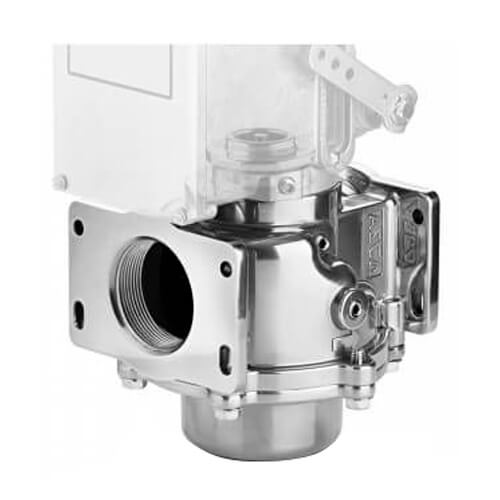

2-1/2" 2-Way Normally Closed V710(B) Quick Opening Trim Hydramotor Valve Body
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$830.77 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
Normally Closed
120 Cv
Description
–
These 2-way normally closed valve bodies are designed
for on/off control of commercial or industrial gas burners.
The V710(B) is designed exclusively for use with the
AH(E) Hydramotor® actuator. The AH(E) Hydramotor
valve consists of two assemblies; the V710(B) valve body
and the AH(E) Hydramotor actuator.
The V710(B) is a push-to-open valve which opens when the valve stem is depressed by an AH(E) Hydramotor. An internal return spring closes the valve when the Hydramotor actuator is de-energized. Optional flange adapters are available for ease of installation and service. These valves are provided with upstream and downstream pipe taps with plugs for routine testing.
Installation: V710(B) valve body mounts in any position directly to AH(E) Hydramotor Actuator.
Quick Opening Trim: (Standard) For applications where metered flow control is not required.
Note: Image may not be actual representation of item.
The V710(B) is a push-to-open valve which opens when the valve stem is depressed by an AH(E) Hydramotor. An internal return spring closes the valve when the Hydramotor actuator is de-energized. Optional flange adapters are available for ease of installation and service. These valves are provided with upstream and downstream pipe taps with plugs for routine testing.
Installation: V710(B) valve body mounts in any position directly to AH(E) Hydramotor Actuator.
Quick Opening Trim: (Standard) For applications where metered flow control is not required.
Note: Image may not be actual representation of item.
Specs
–
| Capacity: | 6470500 BTU |
|---|---|
| Body Pattern: | 2-Way |
| Position: | Normally Closed |
| Max Fluid Temp: | 150°F |
| Min Fluid Temp: | -40°F |
| Differential (PSI): | 15 |
| Pipe Size: | 2-1/2" |
| Flow Capacity (Cv): | 120 |
