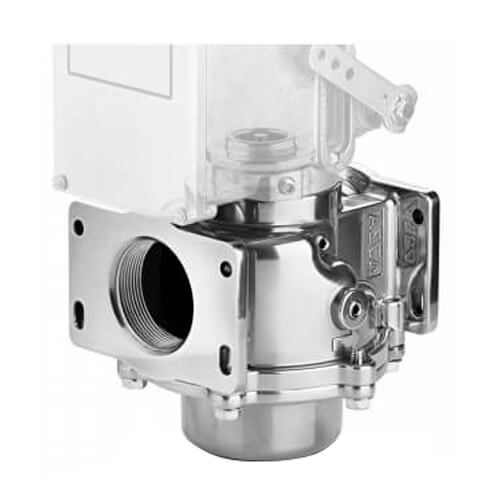

4" Flange 2-Way Normally Closed V710(B) Quick Opening with Valve Seal Overtravel Trim Hydramotor Valve Body
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$14,048.84 each
Backorder
Get it Thu, Jul 9 - Mon, Aug 10
MANUALS (1)
Lift Gate
–
This product weighs 98 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
Normally Closed
Flanged x Flanged Connection
180 Cv
Description
–
These 2-way normally closed valve bodies are designed
for on/off control of commecial or industrial gas burners.
The V710(B) is designed exclusively for use with the
AH(E) Hydramotor® actuator. The AH(E) Hydramotor
valve consists of two assemblies; the V710(B) valve body
and the AH(E) Hydramotor actuator.
The V710(B) is a push-to-open valve which opens when the valve stem is depressed by an AH(E) Hydramotor. An internal return spring closes the valve when the Hydramotor actuator is de-energized. Optional flange adapters are available for ease of installation and service. These valves are provided with upstream and downstream pipe taps with plugs for routine testing.
Installation: V710(B) valve body mounts in any position directly to AH(E) Hydramotor Actuator.
Quick Opening w/Valve Seal Overtravel Trim: (Suffix V22) For any “on-off” application where the user, code or approval agency requires a valve seal overtravel arrangement.
Note: Image may not be actual representation of item.
The V710(B) is a push-to-open valve which opens when the valve stem is depressed by an AH(E) Hydramotor. An internal return spring closes the valve when the Hydramotor actuator is de-energized. Optional flange adapters are available for ease of installation and service. These valves are provided with upstream and downstream pipe taps with plugs for routine testing.
Installation: V710(B) valve body mounts in any position directly to AH(E) Hydramotor Actuator.
Quick Opening w/Valve Seal Overtravel Trim: (Suffix V22) For any “on-off” application where the user, code or approval agency requires a valve seal overtravel arrangement.
Note: Image may not be actual representation of item.
Specs
–
| Capacity: | 10200000 BTU |
|---|---|
| Body Pattern: | 2-Way |
| Position: | Normally Closed |
| Pipe Size: | 4" |
| Connection Type: | Flanged x Flanged |
| Min Fluid Temp: | -40°F |
| Max Fluid Temp: | 150°F |
| Differential (PSI): | 15 |
| Flow Capacity (Cv): | 180 |
