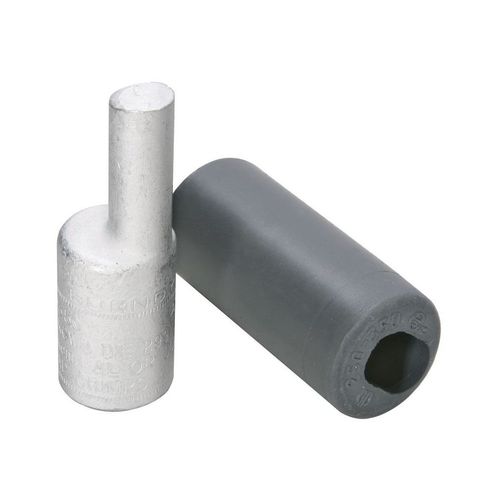

Compression Pin Adapter, 4/0 AWG, .42" Pin Dia, 1.22" Pin Length, AL9CU

Aluminum Compression Pin Adapter, 4/0 AWG, 0.42" Plug Dia, 1.22" Plug Length, Al/Cu Rated, Tin Plated.

• All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion
• Provides the shortest connector length design possible permitting easy installation in equipment with limited working space
• Solid electro-tin plated aluminum plug
• Proper electrical connection made easily and eliminates the "how tight is tight" issue
• Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment
• Offset plug design available in sizes 2/0 through 750 kcmil providing flexibility and maximizing the use of limited space while eliminating interference between conductors and equipment
• Electro-tin plating resists corrosion
• Factory pre-filled with PENETROX oxide inhibiting compound with conductive metallic particles to penetrate aluminum oxide between strands and forms an air-tight connection
• EPDM rubber covers supplied with each connector and rated for 600V eliminating taping
• Only 5 die sets are required to install the complete line from #6 to 750 kcmil reducing inventory requirements
• Supplied in plastic convenience pack so cover and connector are kept together and free of foreign material until opened
• Connectors are clearly marked with catalog number, wire size, along with a color-coded die index providing clear, easy to use information
